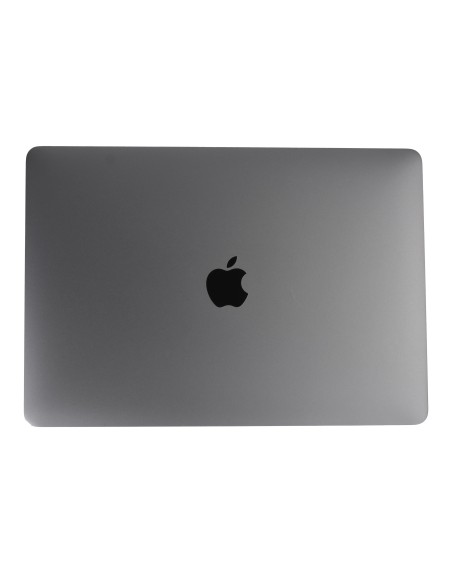

Macbook Complete A2337 Screen - Space Gray - OEM Quality

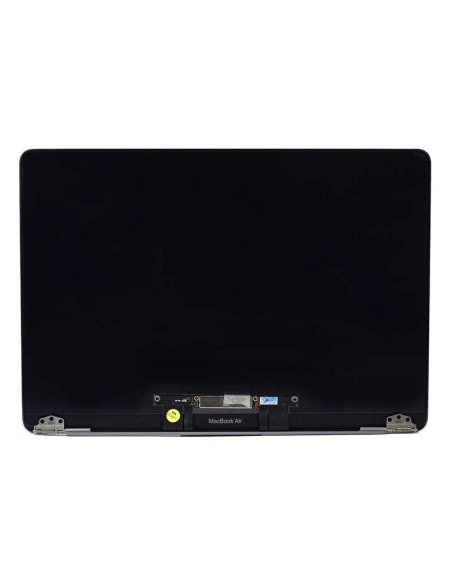

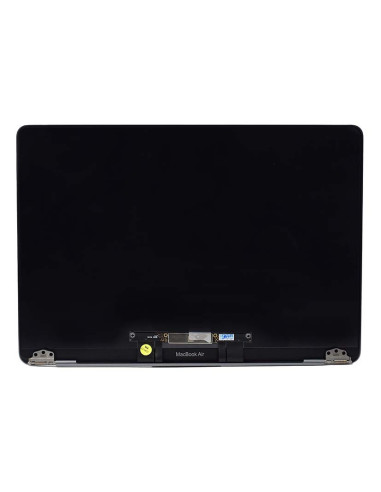

Get a ready‑to‑install display assembly for Macbook Air A2337 that restores factory look, fit, and visuals in one swap. The assembly ships pre‑built with lcd panel, aluminum top case in space gray, hinges, edp flex, clutch cover, wifi antenna set, lid gasket, and facetime hd camera. The 13.3‑inch retina panel delivers 2560 × 1600 resolution at 227 ppi with 16:10 aspect ratio, wide color (p3), true tone support, and a glossy surface with anti‑reflective coating. Typical brightness is 400 nits with even backlight, stable gamma, and low mura for clean whites and consistent gray fields. The finish is color matched to oem space gray so you can replace cracked or scuffed lids without repainting or blending panels. The design is plug‑and‑play once installed, allowing you to close the lid confidently with smooth hinge travel and precise alignment.
Compatibility And Technical Specifications
This part is compatible with Macbook Air A2337 13‑inch (2020, m1) only and is not cross‑compatible with A2179 or A1932. The connector is native edp via the pre‑installed display flex that mates with the logic board, and the ambient light sensor and camera are integrated in the bezel for auto brightness and video calls. Panel type is ips with 60 hz refresh, led backlight, and factory color profile that supports srgb and p3 workflows. Glass is laminated to the lcd for parallax, and the outer surface uses an oleophobic topcoat to resist fingerprints. The hinge set arrives centered and pre‑torqued within factory range for proper clutch tension, and the antenna leads are routed in the lid for stable wifi and bluetooth reception. The package weight is optimized for courier shipping with foam corner blocks to protect edges and the clutch area.
Assembly Details And Quality Control
Every unit is inspected for pixel defects, line artifacts, tint uniformity, and backlight bleed, then verified for camera focus, sensor response and hinge symmetry. Color and brightness are checked across multiple points to reduce delta‑e variance, and the polarizer is screened for scratches and rainbowing. The lid shell is oem grade aluminum with precise machining around the camera, gasket, and hinge pockets, and the paint stack matches space gray under varied light. The flex is strain‑relieved at the clutch, captive screws are checked for thread integrity, and the bezel gasket is seated to prevent light leaks. Each assembly is sealed in an anti‑static bag with desiccant and ships with display film applied so you handle the lid during fitting without marking the glass.
Installation Notes For Repair Shops
Power down the Macbook, remove the p5 bottom screws, isolate the battery, and free the antenna brackets and display cable before loosening hinge bolts. Support the lid during removal, set the new assembly, align the hinge barrels to the chassis line, and snug bolts before final torque to maintain even gap and smooth closing force. Reconnect the display flex and antennas, reassemble, and test for image, camera, auto brightness, lid angle wake, and wifi strength before handing off. Typical bench time for an experienced technician is 30 to 60 minutes, and no board‑level work is required. Use medium‑strength threadlocker on the hinge screws, avoid pinching the flex at the clutch, and clean the clutch cover area to prevent creaks. Keep the protective film on until final wipe to reduce dust entrapment under the glass.
The screens are covered with a 2-year warranty. The warranty does not cover man-made damage.
