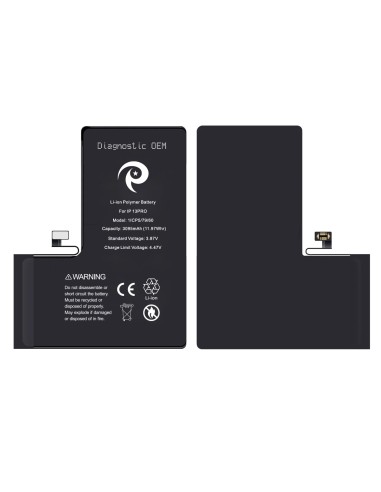

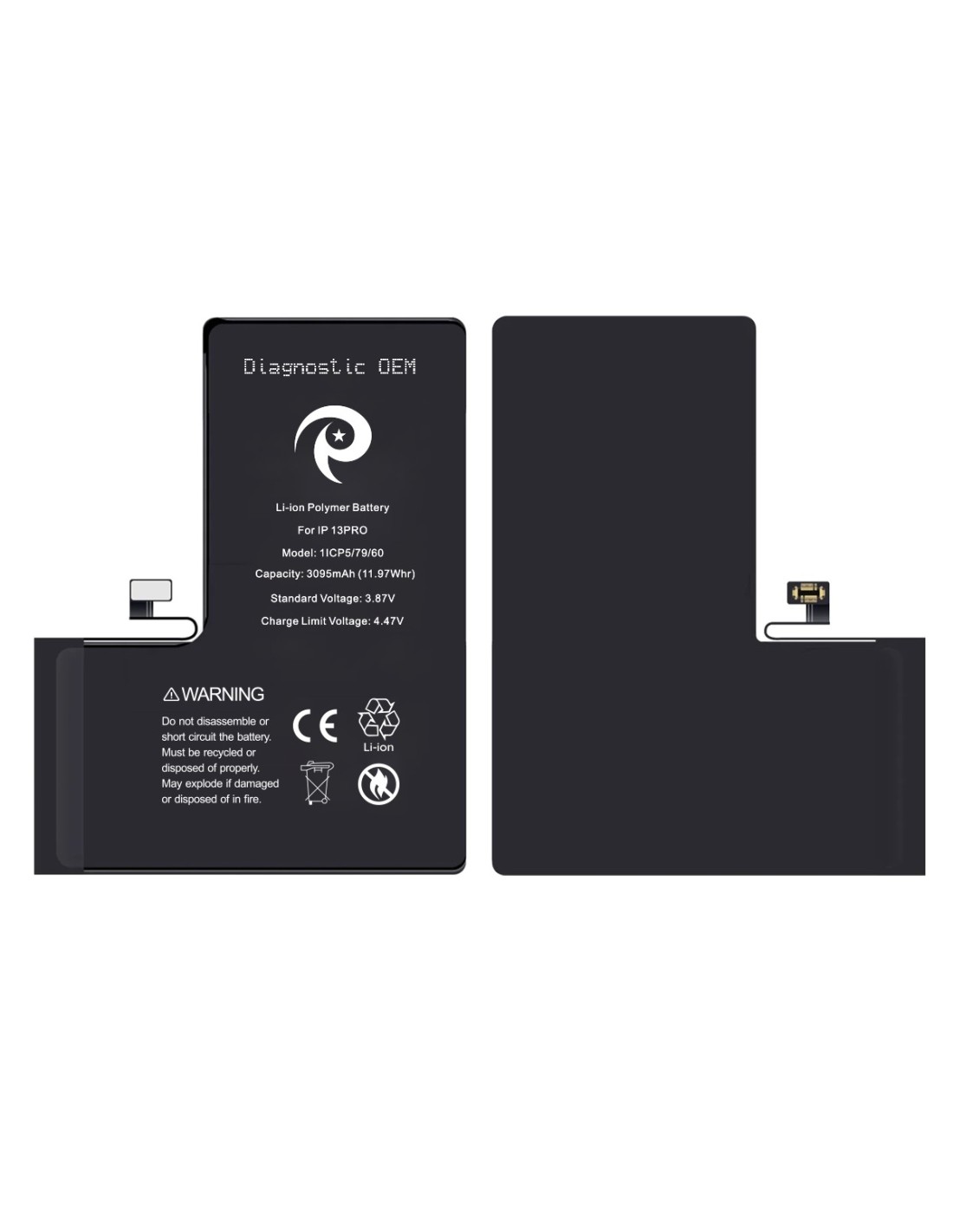

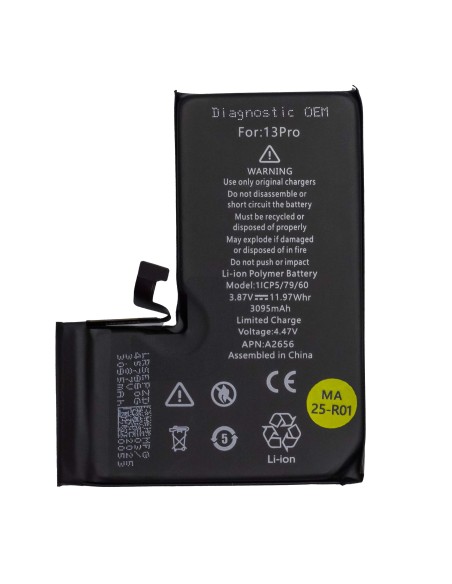

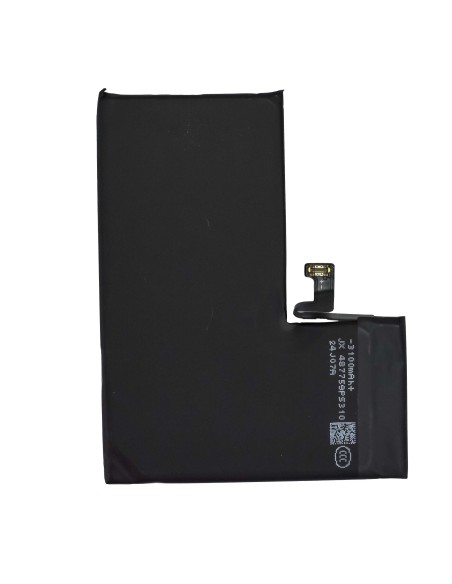

Diagnostic OEM Battery For iPhone 13 Pro
This iPhone 13 Pro - Diagnostic OEM Battery is built for swift intake checks, repeatable bench work, and dependable final installs when needed. You get an original-spec cell and board-matched flex that drops straight in, powers up fast, and lets you validate charge, boot, and performance before you commit to sealing the device. Model id is A2638 and fits model is iPhone 13 Pro.
This pack delivers a typical capacity of 3095 m at a nominal 3.83 v, with an energy rating of 11.97 wh and a lithium‑ion polymer chemistry tuned for the iPhone 13 Pro power profile. Protection circuitry manages overcharge, over‑discharge, over‑current, and thermal cutoffs, so you can safely loop charge tests, power‑draw checks, and long diagnostics without drama.
Key Technical Data And Build Details
Core specs include a typical 3095 mAh capacity, nominal 3.83 v, and 11.97 wh energy, matching the iPhone 13 Pro’s expected runtime envelope under like‑for‑like conditions. The OEM flex and connector align precisely with the iPhone 13 Pro logic board, maintaining correct fit under the shield and clean routing around the Taptic Engine and speaker housing. The integrated battery management system supports accurate state‑of‑charge, voltage, current, and temperature reporting to the handset, enabling reliable health and cycle data after pairing or programming.
Pack construction uses a high‑stability polymer cell stack with multi‑layer insulation and a tab weld for robust mechanical integrity during repeated opens. The assembly is ESD‑safe packaged for workshop handling, and the footprint matches the original tray and adhesive lanes, so you can test on the bench and then complete a tidy final install with fresh pull‑tabs and a perimeter seal.
Diagnostic Use Cases For Bench Work And Triage
This battery is ideal for rapid triage when a handset arrives with deep discharge, random shutdowns, or suspected charge‑path faults. You can boot the device quickly, run diode‑mode checks observe live current with an inline meter, and isolate whether issues stem from the cell, the Tristar‑style charge path, or board‑level power rails before sourcing additional parts. You also gain a consistent baseline for testing cameras, Face ID, haptics, and speakers without burning through adhesives on every reopen.
During refurbishment, you can cycle through multiple units and confirm that iOS boots cleanly, that baseband and sensors initialize, and that charge acceptance remains stable under load. This saves time on returns and helps you separate battery‑related symptoms from logic defects early in your workflow.
Installation Notes, Pairing, And Calibration
For accurate health reporting in iOS and to avoid a service message, you should transfer the original battery data or pair the BMS to the handset using your preferred programmer where applicable. If you skip pairing, iOS will power and charge normally but may show an important battery message with limited health metrics. You will get the cleanest results if you power down, disconnect, and connect with antistatic precautions, then seat the flex fully before reattaching shields.
After final assembly, you can run two gentle calibration cycles by charging to 100%, resting on charge, then discharging to around 20% and repeating. You should replace the pull‑tab adhesives and the perimeter gasket during the last close to maintain dust and splash resistance. You can then verify charge current, thermals, and health data in settings to sign off the repair with confidence.
