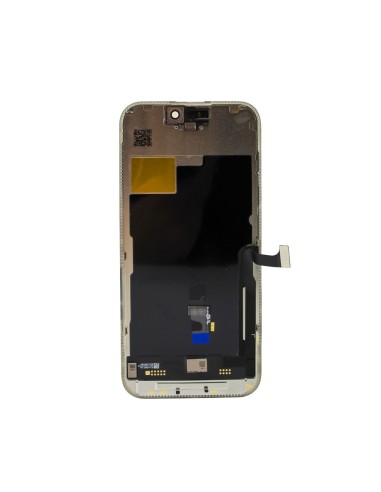

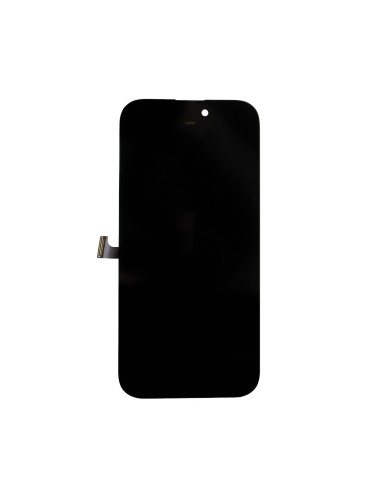

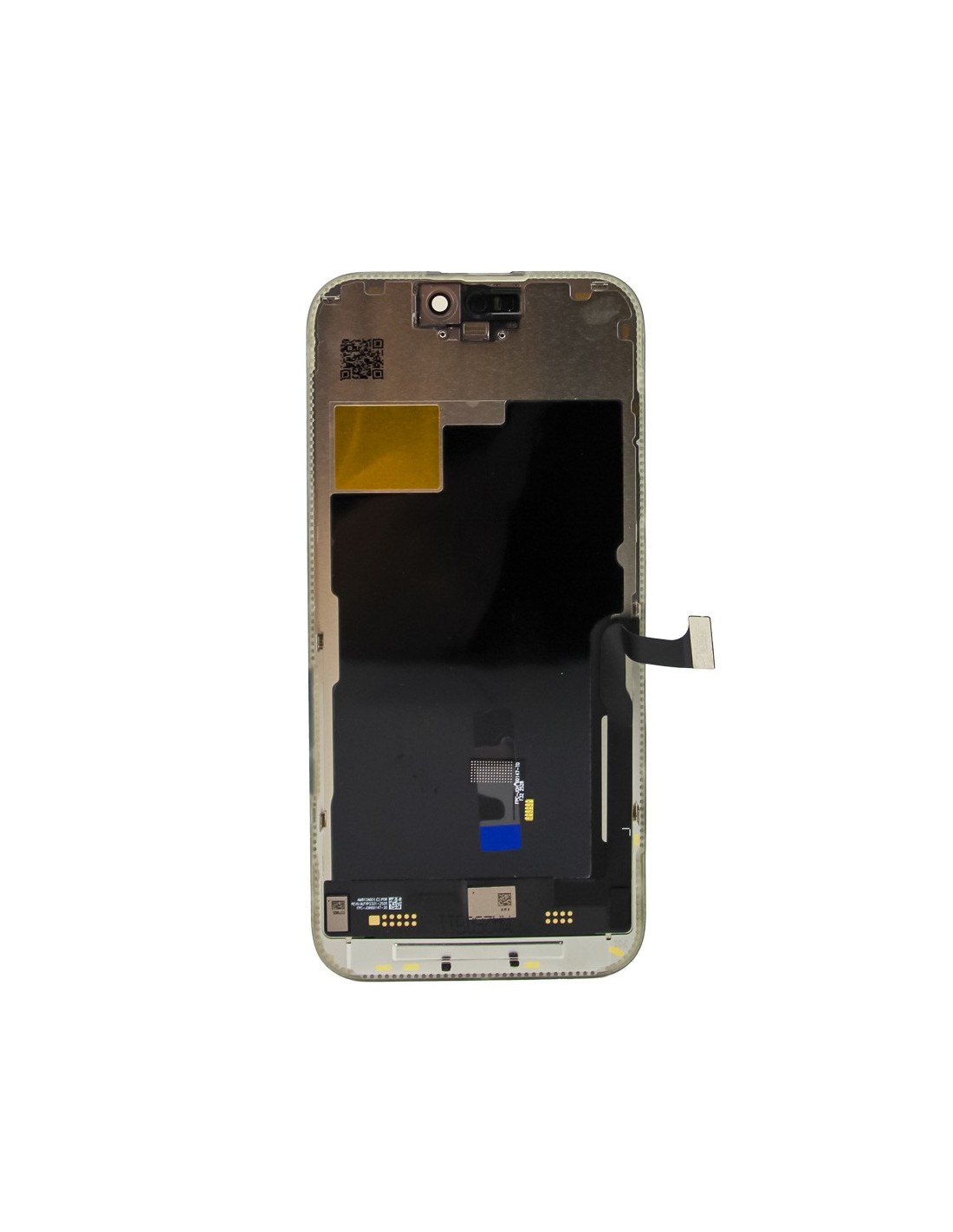

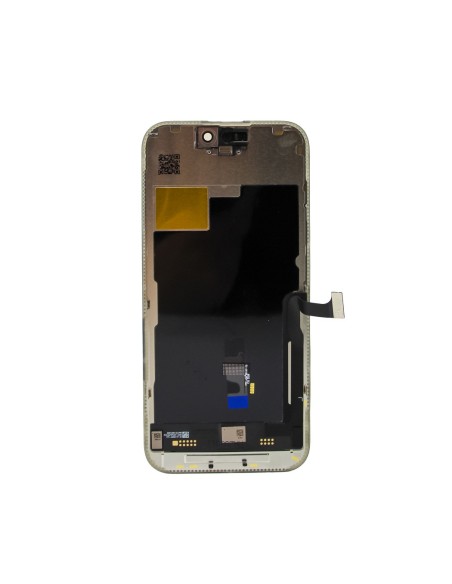

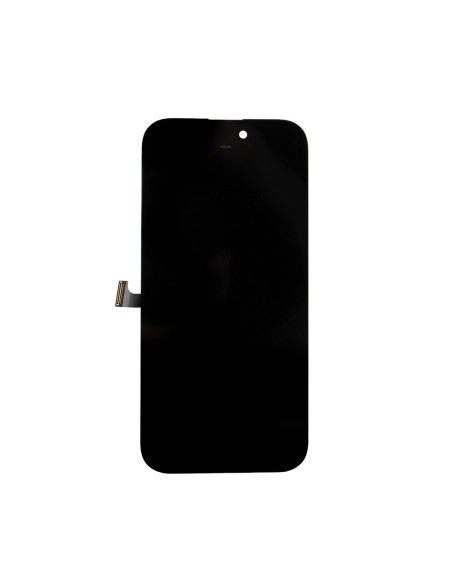

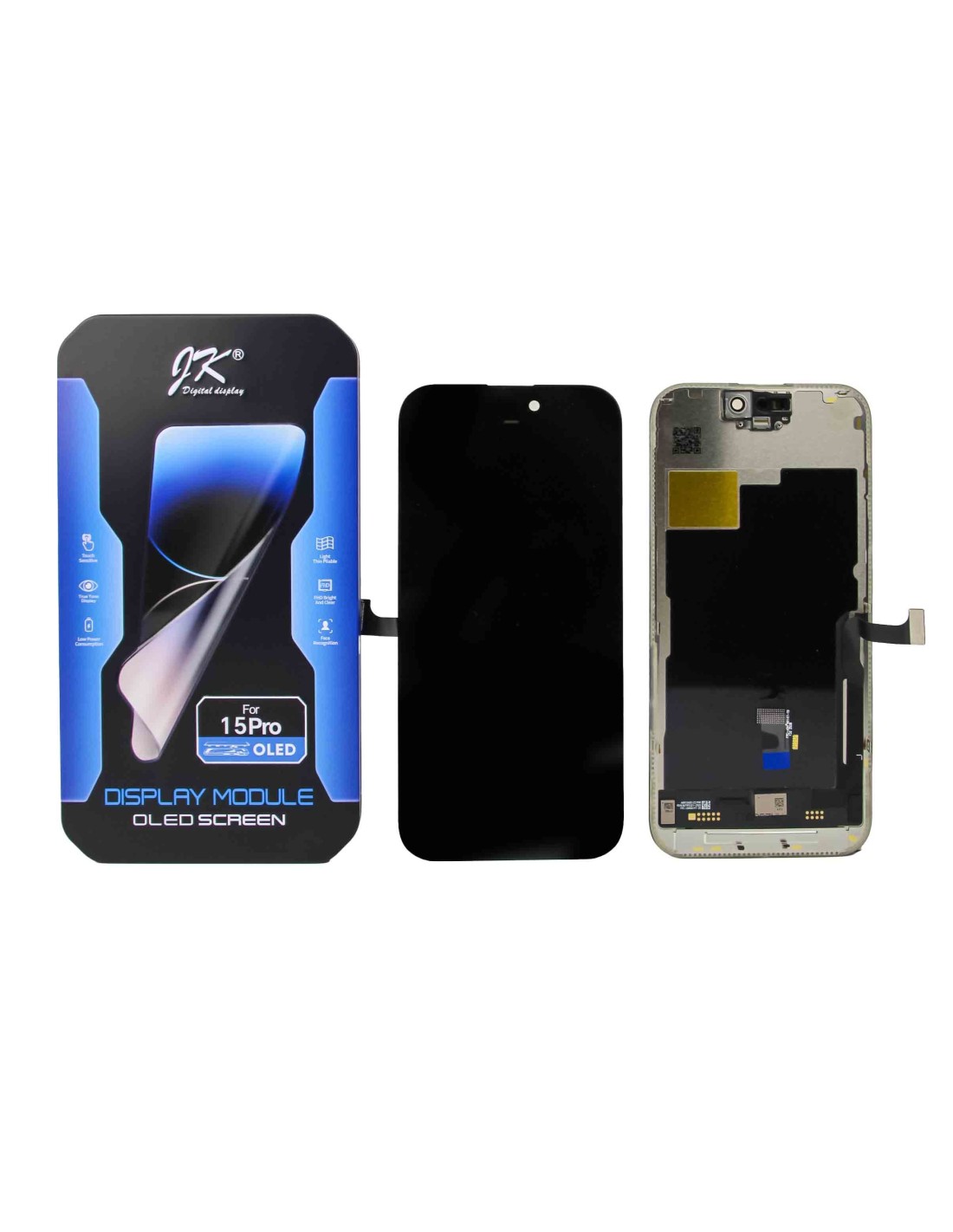

Fast iPhone 15 Pro display with 120 smoothness
The iPhone 15 Pro - JK OLED FHD 120HZ is a complete display and touch assembly built for swift, high‑quality screen replacements on Apple’s 6.1 inch flagship. You get a crisp fhd class panel with true 120hz refresh for fluid animations, sharp text, and clean motion in games, ui, and scrolling. The jk oled matrix delivers deep blacks, strong contrast, and stable viewing angles so your repaired device looks consistent across apps and light conditions.
The digitizer is in‑cell for precise touch tracking and low input latency, giving you reliable taps, swipes, and gestures. The assembly aligns with oem contours for a neat bezel line and clean fit under the gasket, and the flex follows the original routing to simplify installation and reduce strain during closure.
Built for repair workflows
This part is tuned for day‑to‑day bench work where speed, repeatability, and post‑repair reliability matter. The assembly installs without special adaptation, supports 120hz out of the box, and pairs with the logic board without extra configuration. The panel arrives ready for transfer of the small parts cluster so you can keep turnaround times tight in walk‑in or refurb lines.
Move the original ear speaker and sensor bracket, then restore true tone by writing the display data from the old panel with your programmer. Face id remains paired to the original front sensor module, so keep that flex intact and reuse it. Finish with fresh frame adhesive, apply uniform pressure during cure, and run a quick touch grid and color check before handoff.
Key technical data for iPhone 15 Pro - JK OLED FHD 120HZ
Compatibility: iPhone 15 Pro only. Display type: jk oled with in‑cell capacitive touch. Diagonal: 6.1 inch class. Resolution: fhd class for sharp, dense detail. Refresh rate: 120hz for smooth motion and responsive feel. Color: wide gamut rendering with deep contrast for lifelike images. Glass: hardened cover glass designed for everyday durability. Touch performance: high with palm‑rejection for edge gestures. Backlight: not required due to oled emissive pixels, resulting in uniform blacks and reduced ghosting.
Contents: display and touch assembly with mounted frame and flex cables. Transferred parts required: ear speaker, proximity and ambient light sensors, and front sensor bracket. Software features: true tone supported after data transfer from the original screen. Retained functions: face id when original sensor assembly is reused. Fitment: aligns with oem mounting points and gasket channel. Compatibility scope: works with all storage capacities and variants of iPhone 15 Pro across eu and global models.
Useful repair notes and use cases
Use this assembly for cracked glass, dead pixels, touch failure, or liquid‑damaged panels where the logic board and front sensors are intact. The 120hz refresh helps restore premium feel on devices used for gaming, creative apps, and enterprise field tools, while the oled matrix keeps videos and ui elements punchy and uniform.
For bulk refurbishment, pair the iPhone 15 Pro - JK OLED FHD 120HZ with pre‑cut frame adhesive, a display programmer for true tone cloning, and a pressure jig to standardize seal compression. Keep a final checklist that includes proximity test, color tint check on a white background, 120hz motion verification, and multi‑touch diagnostics to ensure consistent qa across batches.
Can be used with model A3102.
