Original Pulled Diagnostic Screen For iPhone 15 Pro - Black

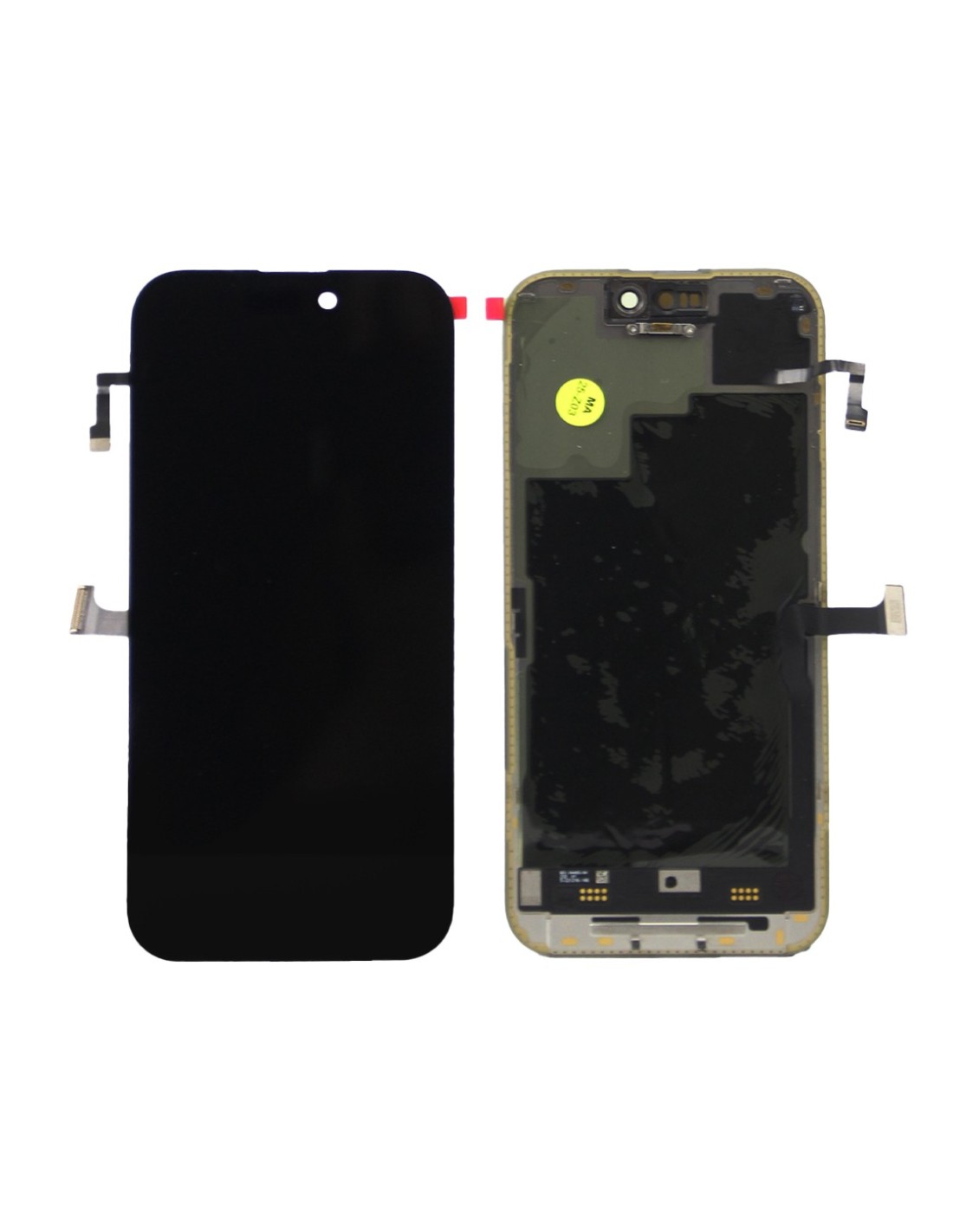

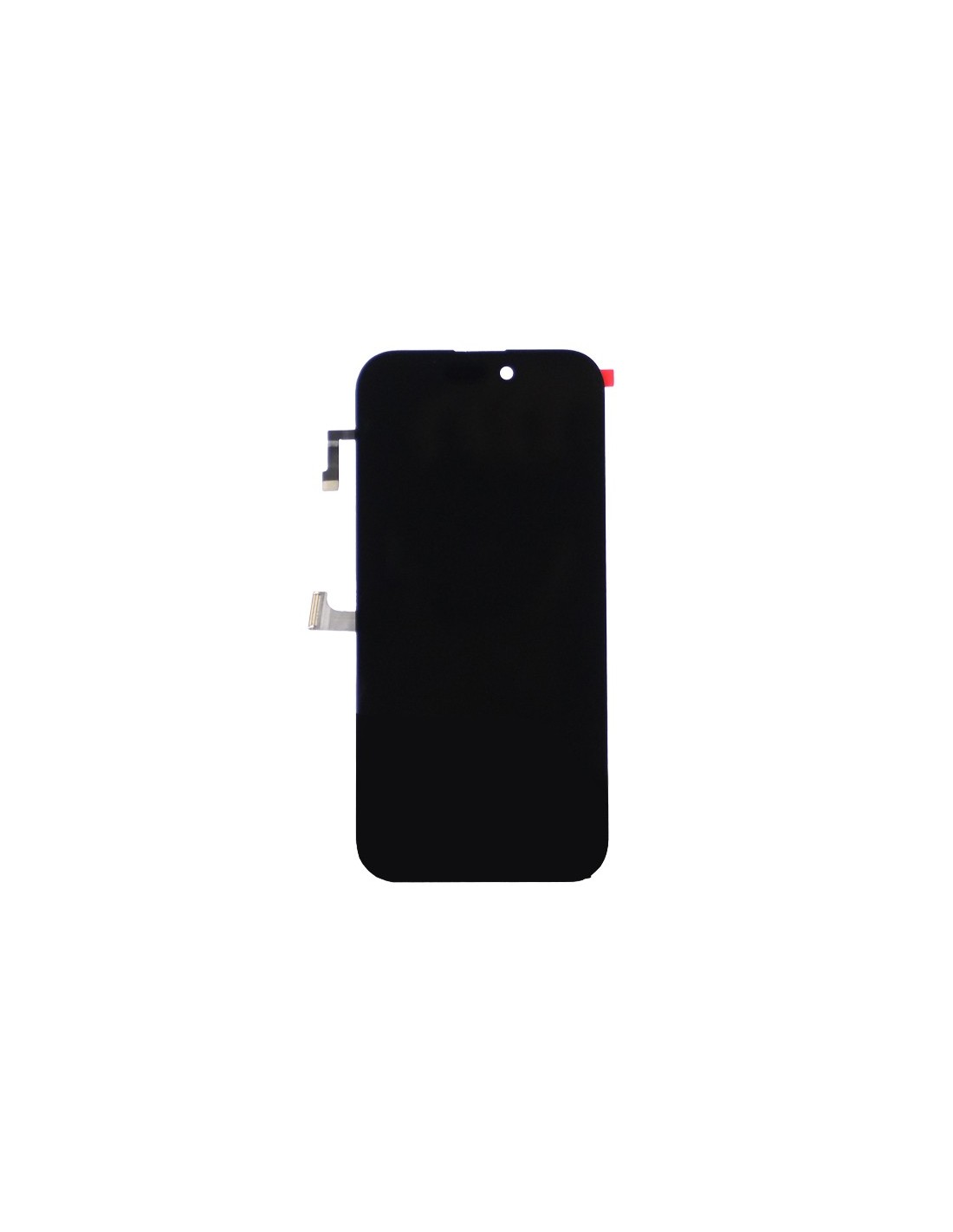

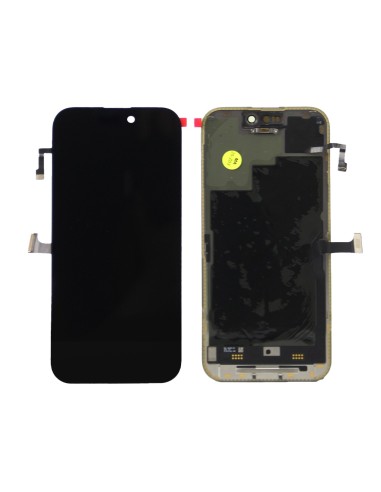

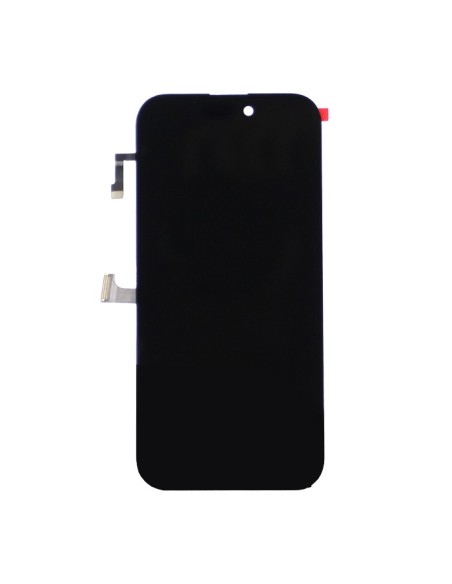

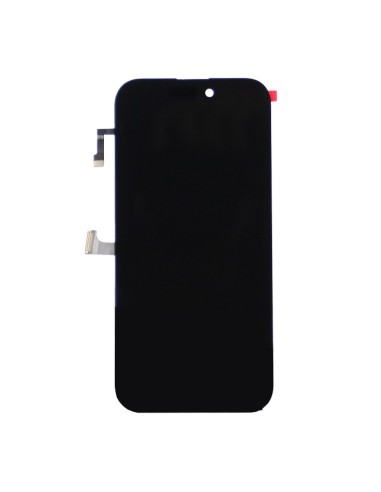

This iPhone 15 Pro - Black - Pulled Diagnostic Screen is an oem apple display assembly removed from diagnostic units with minimal runtime, delivering authentic color, uniform brightness, and precise touch response. Each panel is visually clean, with no burn‑in, no dead pixels, and a factory‑accurate black bezel that matches the original finish. The assembly includes the oled panel and integrated capacitive digitizer, preserving apple’s lamination quality for excellent optical clarity responsiveness.
This 6.1‑inch super retina xdr ltpo oled supports promotion adaptive refresh at 1–120 hz, a native 2556 × 1179 resolution at 460 ppi, p3 wide color, hdr10 and dolby vision, true tone capability (once original display data is programmed), haptic touch, and the dynamic island cutout. Typical sdr brightness reaches up to 1000 nits, with up to 1600 nits peak in hdr and up to 2000 nits peak outdoor. The front glass carries an oleophobic coating for improved smudge resistance, and the assembly ships with protective films to keep the surface pristine until installation.
Key Technical Data And Compatibility For A3102
This unit fits model id A3102 and is compatible with iPhone 15 Pro only, in black. The display architecture uses an ltpo oled with a 1–120 hz refresh window for smooth motion and power savings, a 2,000,000:1 contrast ratio for deep blacks, and hardware‑level true tone and ambient light support through the phone’s sensor stack. The digitizer supports precise multi‑touch input across the full active area, and the panel is calibrated for white‑point consistency and gamma tracking within oem tolerances.

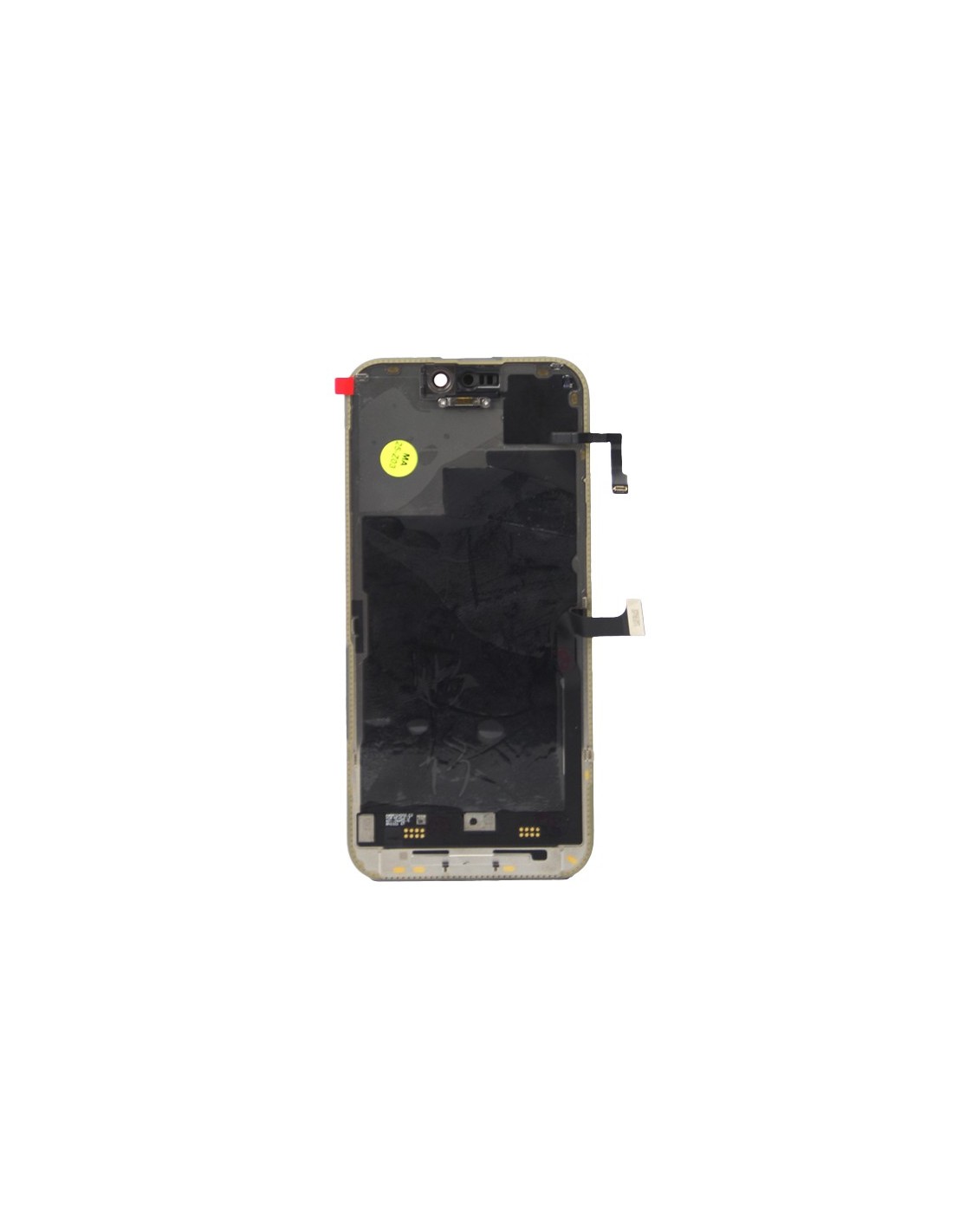

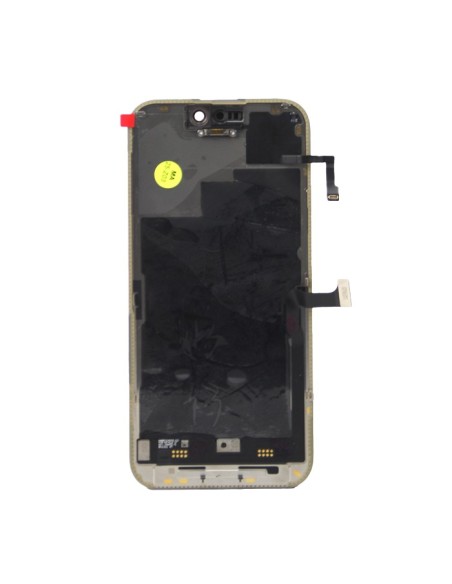

This is a complete display and touch assembly without the earpiece speaker and truedepth camera/sensor flex, which must be transferred from the original device to retain face id and auto‑brightness functionality. The unit features factory‑style flex connectors for the display and digitizer, a black bezel, and alignment points that seat correctly in thePhone 15 Pro frame. Adhesive and the perimeter gasket are not included and should be replaced during reassembly to help maintain dust and moisture resistance.
Repair Benefits, Testing, And Installation Notes
This pulled diagnostic screen is a strong choice for refurbishment scenarios including cracked front glass, touch failure, line artifacts, color shift, or burn‑in on existing units. Shops benefit from authentic oled color reproduction, stable promotion performance, and tight tolerance fitment that reduces rework and callbacks. The part arrives esd‑safe packed and ready bench testing, letting you turn around premium repairs quickly and confidently for iPhone 15 Pro customers.
This assembly is fully tested for oled integrity, touch grid accuracy, brightness uniformity, and promotion refresh behavior before packing. You should migrate the original display’s calibration data with a compatible display programmer to restore true tone after replacement, then run on‑device diagnostics for touch, color, ambient light response, and dynamic island visibility. You should replace the frame adhesive, verify frame flatness, and torque screws to factory spec to avoid pressure points. You should transfer the earpiece speaker and truedepth flex carefully to preserve face id, clean all mating surfaces, and finish with a final burn‑in and color sweep on white, gray, and black backgrounds to confirm a flawless result.
