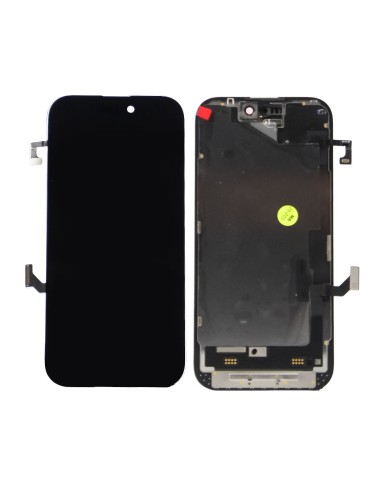

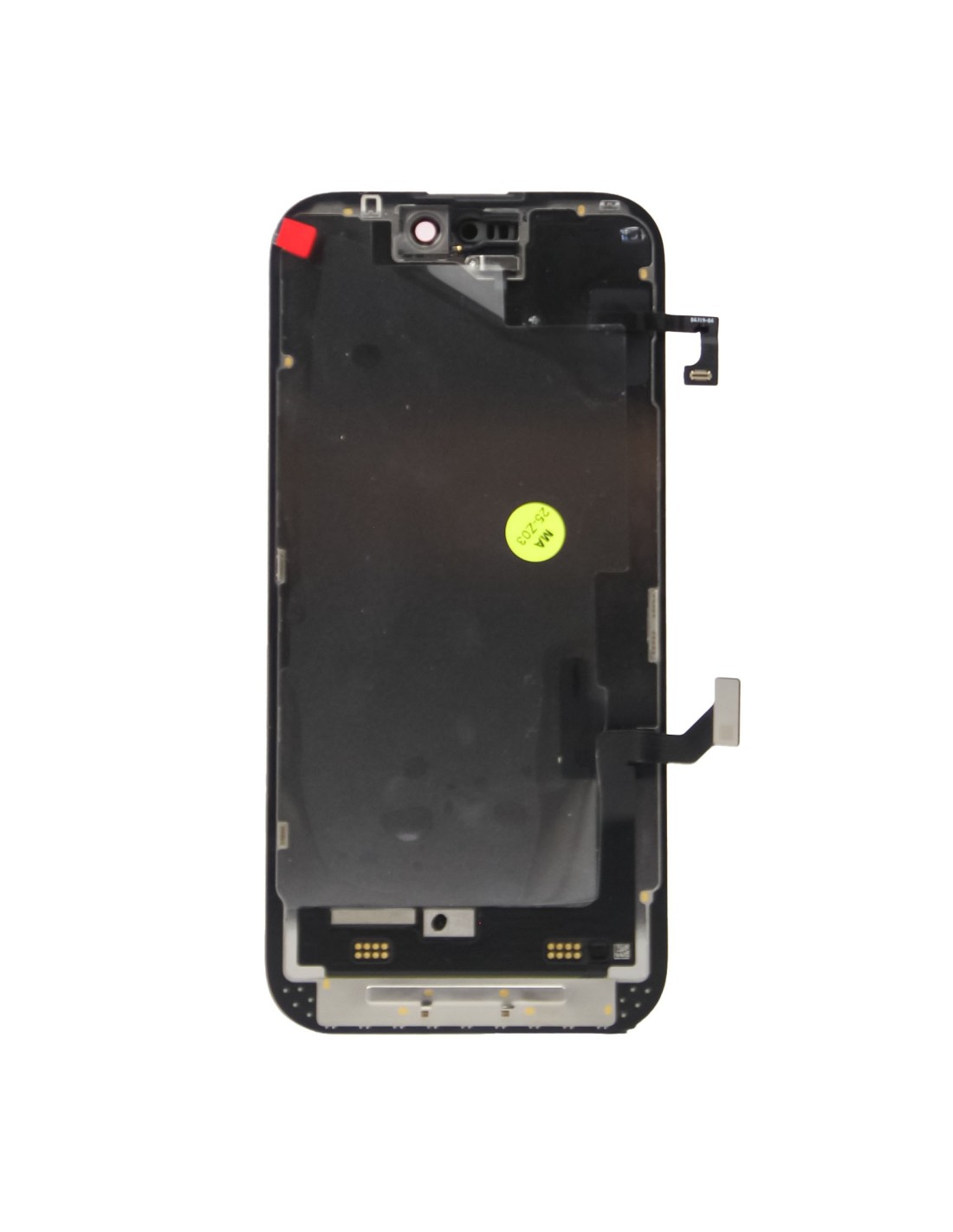

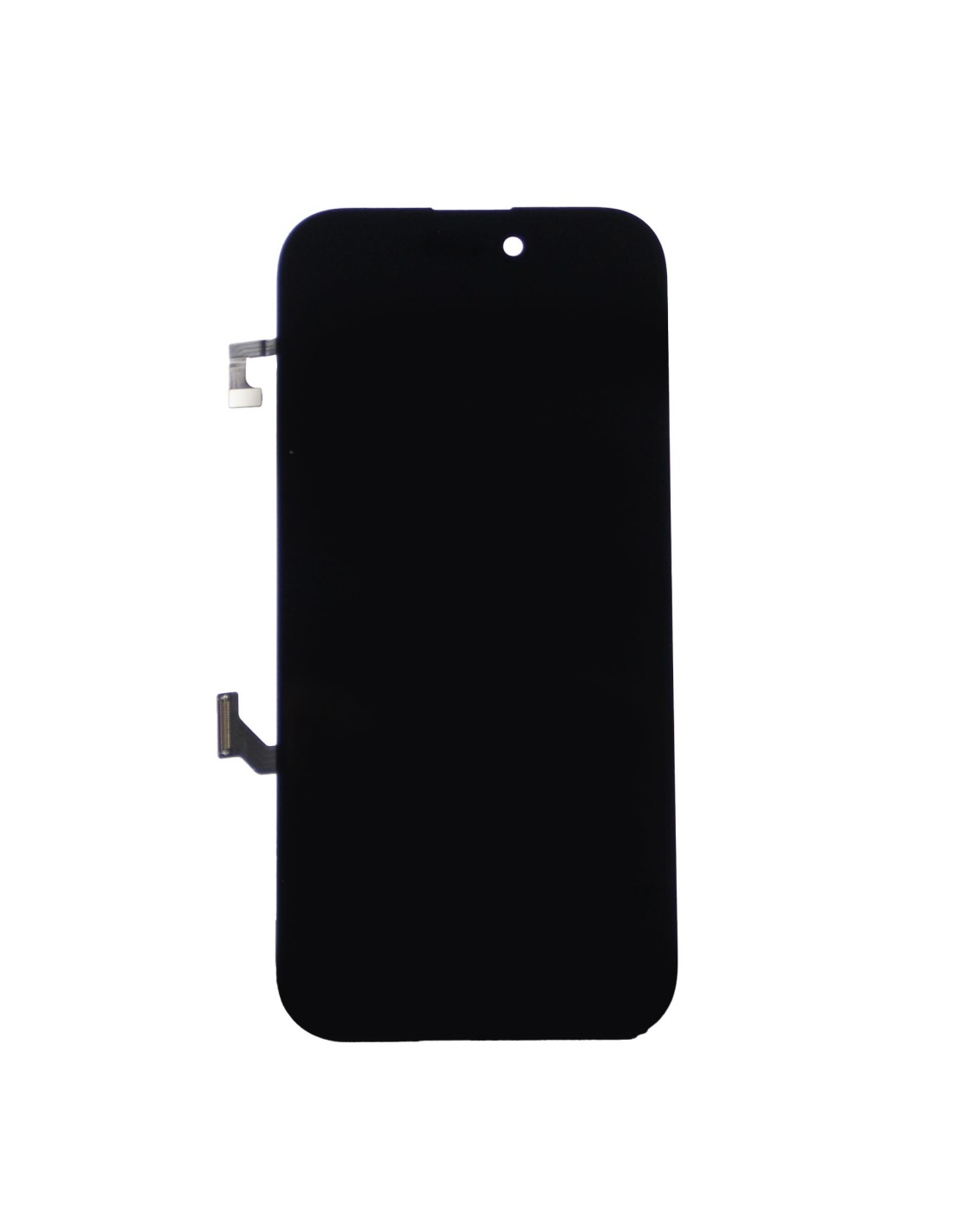

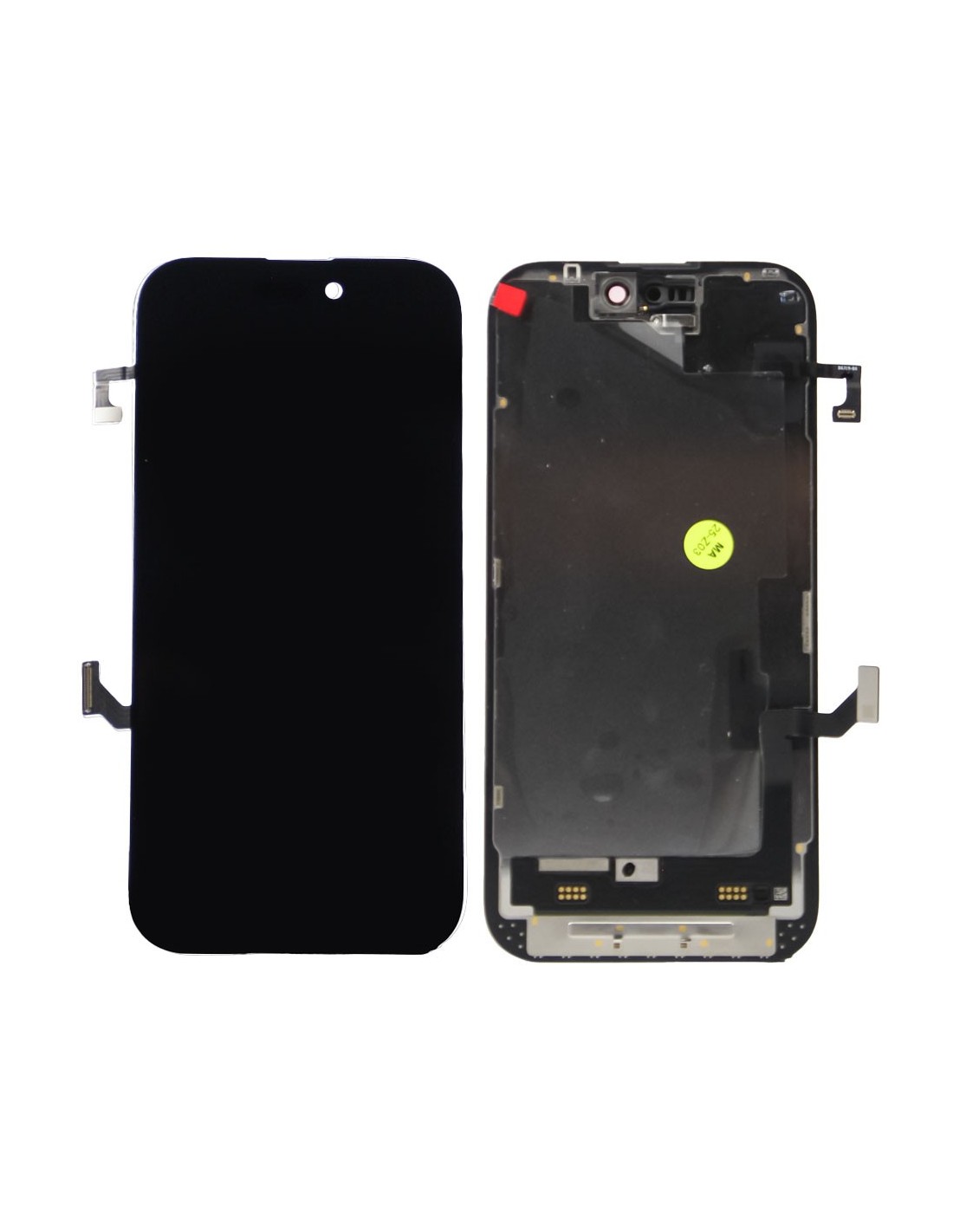

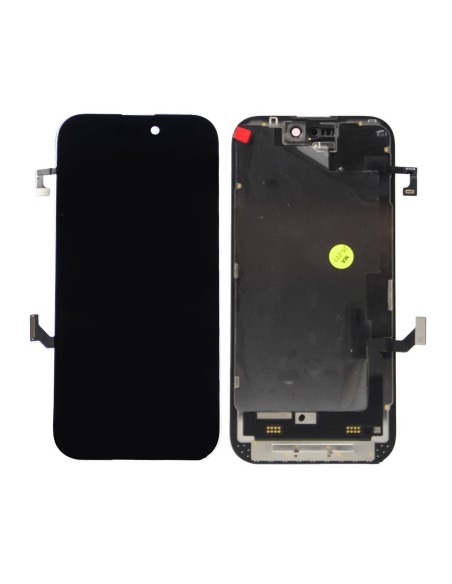

Genuine iPhone 15 - Black - Pulled Diagnostic Screen
Get an original iPhone 15 - Black - Pulled Diagnostic Screen for fast board triage, accurate fault isolation, and reliable end-customer repairs. This is a genuine oled display assembly pulled from donor units, verified for clean touch response, stable color, and correct dynamic island rendering. The panel is ideal for shops that want oem performance without the variability of third‑party builds, and it is ready to slot into your workflow for quick swap tests or refurbishing.
The screen retains the iPhone 15 feature set you expect, including true tone support when paired with the original display data, wide color (p3), haptic touch, and high brightness levels suitable for daylight checks. The black front bezel matches the factory look and works across all iPhone 15 housing colors, so you can standardize inventory without juggling multiple variants.
Technical data and compatibility
Model id is a3090 and fits model is iPhone 15. Panel type is super retina xdr oled, 6.1 inches diagonal, with a 2556 × 1179 resolution at approximately 460 ppi. Refresh rate is 60 hz, with hdr peak brightness up to 1600 nits and outdoor peak up to 2000 nits, plus typical 1000 nits for everyday use. Color gamut is p3 with true tone capable when you transfer the original eeprom data. The display features the dynamic island cutout and ships with a factory-style polarizer and oleophobic coating.
The cover glass is ceramic shield grade bonded to the oled via oca for consistent clarity and touch accuracy. The assembly uses the standard iPhone 15 display fpc connectors and supports proximity and ambient light functions once your original sensor array is present on the device. The unit is tested for touch grid integrity, color uniformity, and brightness regulation before packing.
Installation, pairing, and included parts
The assembly includes the oled panel with front glass and frame. Face id hardware, front sensor flex, and earpiece speaker are not included and remain on the device, plan to retain or reinstall those parts. Precut perimeter adhesive is not included, and you should fit a new gasket to restore dust and splash resistance after opening. Always disconnect the battery before connecting the screen and torque display screws evenly to avoid panel stress.
True tone and auto brightness restore when you copy the original display’s calibration data using your preferred programmer. Touch, haptic touch, and dynamic island behavior work out of the box once the board is healthy. Always run a full post‑install check covering touch across all axes, colors on gray and white fields dimming, wake, and ambient light response.
Ideal for diagnostics, grading, and refurb lines
Use this pulled diagnostic screen as a known‑good reference to confirm board-level video, backlight, and touch faults before committing to micro-soldering. Keep it on your bench to speed no‑display triage, confirm dynamic island rendering, and verify true tone data transfer. The genuine panel makes a dependable donor match for cosmetic refurbs where oem display performance is required.
Shops across europe can standardize on a single black assembly for consistent testing, faster turnaround, and fewer comebacks. Pair it with a fresh adhesive gasket, run your qc checklist, and return devices with the original brightness curve, color tone, and smooth touch that iPhone 15 owners expect.
