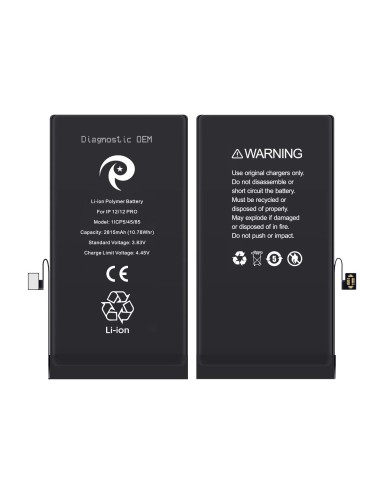

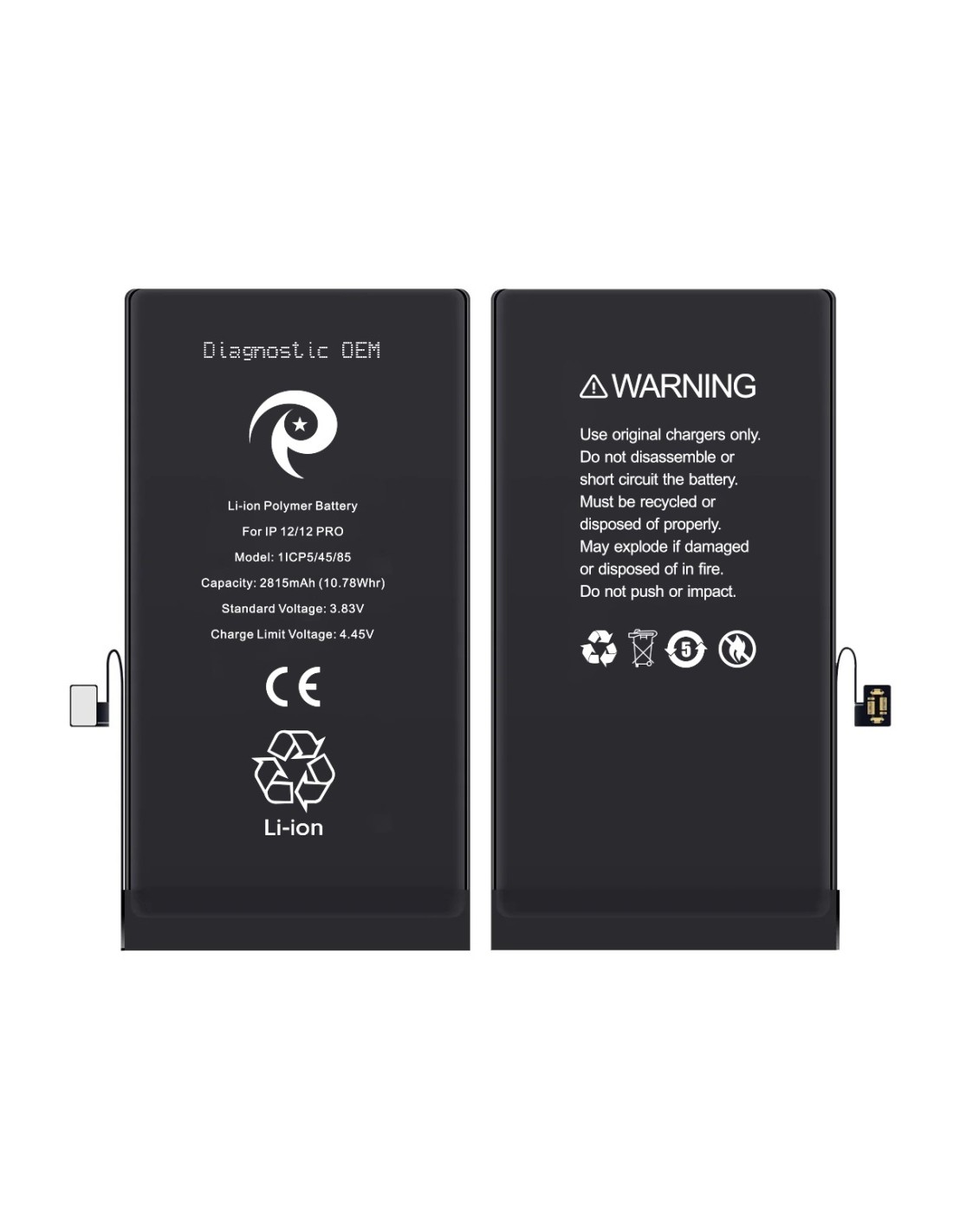

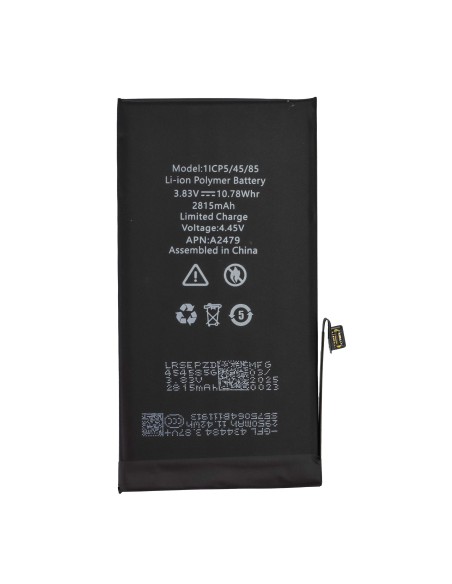

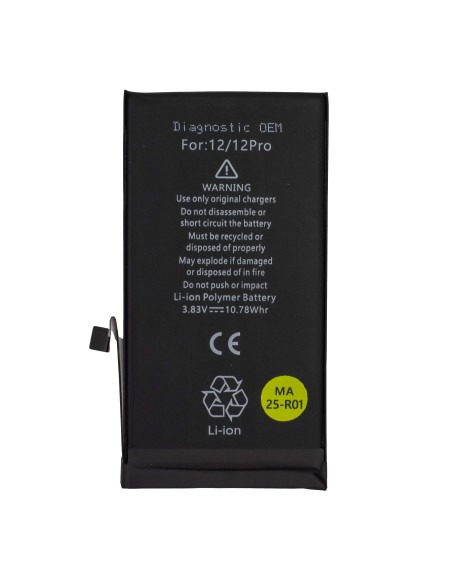

OEM Diagnostic Battery For iPhone 12 And iPhone 12 Pro
Get a precise, shop-ready replacement with the iPhone 12/12 Pro - Diagnostic OEM Battery that reports accurate health data in iOS and delivers stable peak current for camera, 5G, and performance cores. Fits model: iPhone 12, iPhone 12 Pro.
Count on correct specifications that match the original pack: 2815 mAh typical capacity, 3.83 V nominal voltage, and 1078 Wh energy. Enjoy a lithium‑ion polymer cell paired with an OEM-grade BMS that supports state‑of‑charge, cycle count, maximum capacity, and peak performance capability reporting inside iOS Battery Health. Rely on an integrated protection IC for overcharge, overdischarge, overcurrent, and short‑circuit safeguards, plus well‑matched impedance for consistent cold‑start behavior and reduced voltage sag under load.
Key Technical Data And Compatibility
Install this pack as a direct drop‑in for both iPhone 12 and iPhone 12 Pro with the correct battery flex layout and screw positions for the 12‑series bracket. Verify performance quickly after assembly, as the diagnostic board communicates with iOS so you can read capacity percentage and cycle count using the built‑in Battery Health screen or common service tools.
Work confidently across mixed refurb lots, because the calibration curve is tuned for A14‑based power profiles and typical 12‑series thermal envelopes. Expect stable standby, predictable drain during stress testing, and reliable peak output when the device boosts CPU and camera systems Use this pack in front‑of‑house repairs, depot refurb, or batch reworks where consistent battery health metrics and repeatable QA checkpoints matter.
Installation, Calibration, And Repair Workflow
Prepare the device by powering down and discharging the old pack below 25% before opening. Replace the display adhesive seal to help maintain the original water‑resistance rating after service. Use the standard toolkit for 12‑series jobs: P2 pentalobe for the exterior, Y000 for internal screws, a standoff driver logic board posts, plastic picks, a spudger, and ESD protection. Remove the old pull tabs carefully and fit new battery adhesive strips to secure the pack without stress on the flex. Align the battery, connect the flex after the board is seated, and torque screws evenly to avoid bracket warp.
Calibrate after installation to allow iOS to learn the new pack. Charge to 100% and keep it on the charger for an additional hour, then use the device to fully drain to shutdown, let it rest for 30 minutes, and recharge to100% without interruption. Run a brief performance test to check voltage stability under load, verify Battery Health reads maximum capacity appropriately, and confirm cycle count increments after initial use. Document the health metrics on your repair ticket so your team can track QC across devices and batches.
