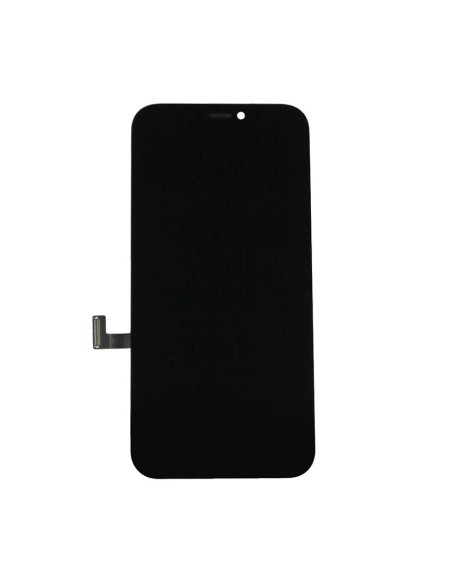

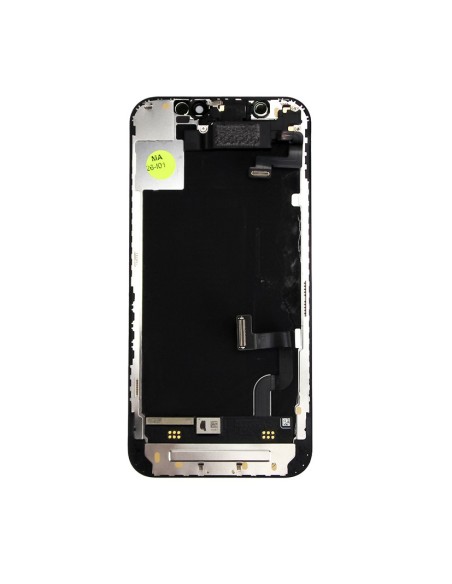

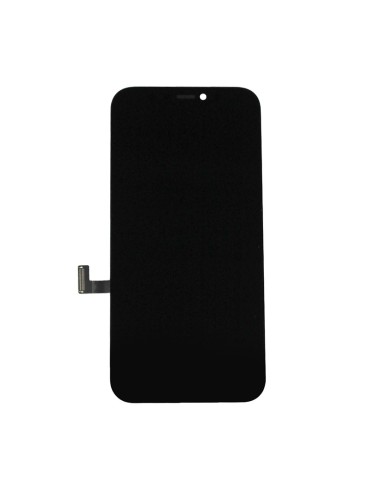

Refurbished Diagnostic Screen For IPhone 12 Mini With Pre‑Installed Earspeaker

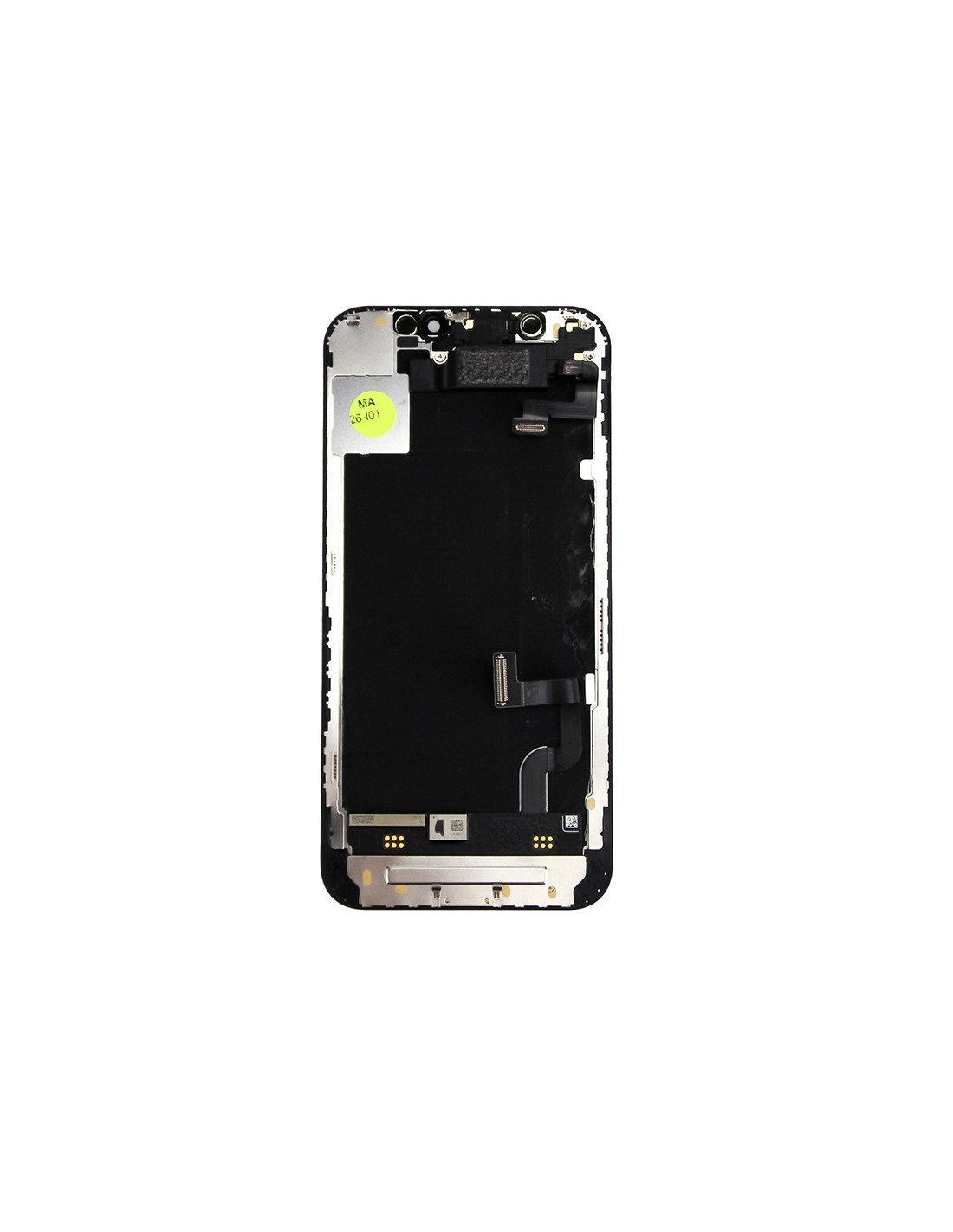

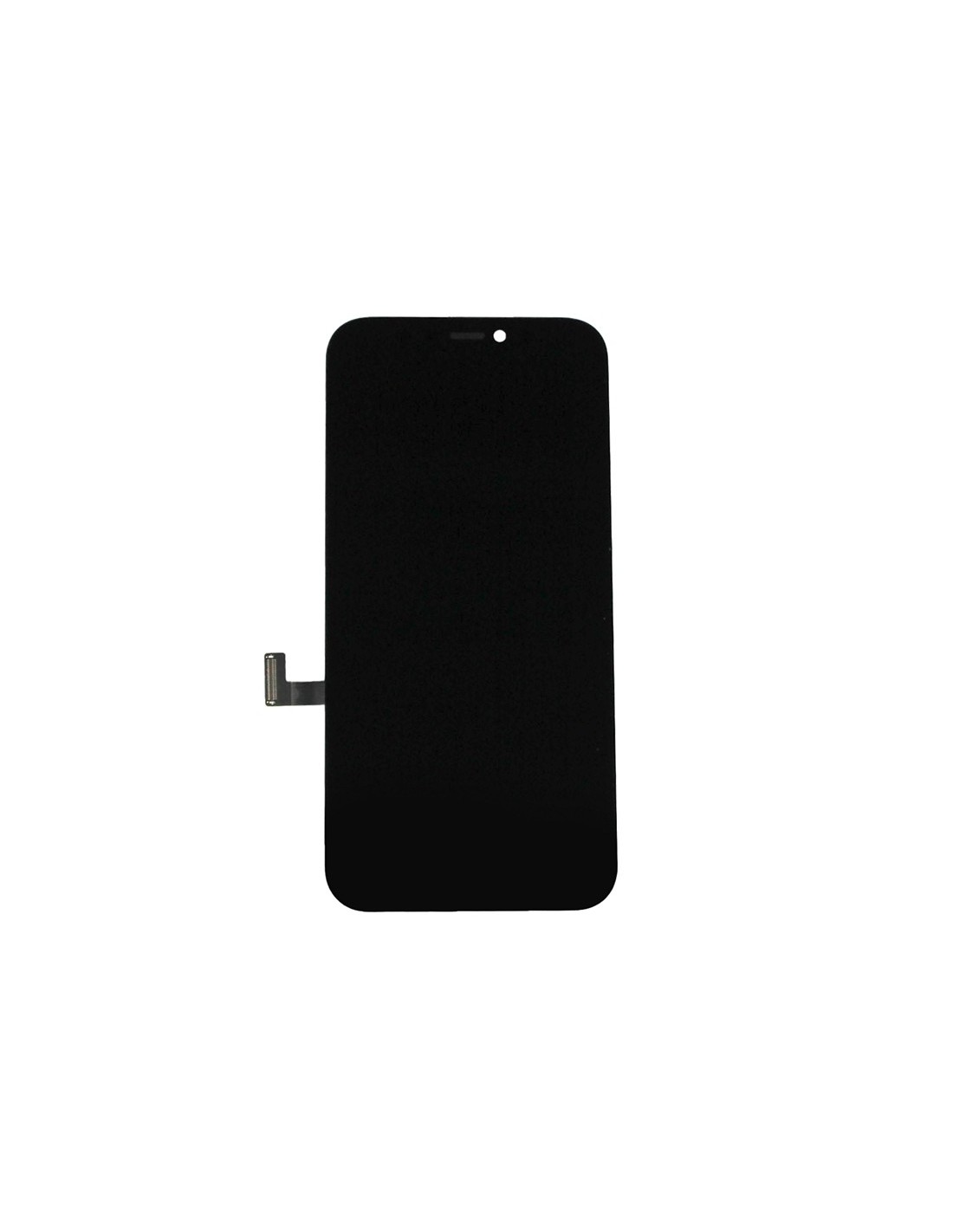

The iPhone 12 Mini - Black - Refurbished Diagnostic Screen (Incl. Earspeaker) is a plug‑and‑test front assembly built for fast triage and repeat bench work. You get a refurbished OLED panel with touch digitizer, frame, and a pre‑installed earspeaker unit so you can verify display, touch, proximity, ambient light, and in‑call audio in seconds.
This assembly is for iPhone 12 Mini mainboards and is ideal for ruling out display‑side faults before you commit to a full repair. Face id functions remain paired to the original sensor flex, so you should transplant the customer’s original sensor assembly when you need to validate face id on the bench.
Compatibility And Key Specifications
Fits model: iPhone 12 Mini. Model id: A2399. Color: Black. Panel type: Super Retina XDR OLED. Diagonal size: 5.4 inches. Resolution: 2340 × 1080 pixels. Pixel density: 476 ppi. Refresh rate: 60 hz. Contrast ratio: 2,000,000:1 typical. Color: wide color (p3) with true tone support. Brightness: up to 625 nits typical, up to 1200 nits hdr peak. Touch: capacitive multi‑touch with haptic touch support.
Glass and finish: oleophobic coating for fingerprint resistance. Connectors: display and touch fpc connectors compatible with the iPhone 12 Mini logic board. Sensors supported on install: proximity and ambient light via the pre‑installed earspeaker assembly. True tone can be retained when you copy the original eeprom data with your programmer, if required by your workflow.
Built For Bench Testing And Fast Turnaround
This diagnostic screen helps you separate board‑level, flex, and display faults quickly, cutting repeat opens and guesswork. You can confirm boot to image, touch response across the full grid, color uniformity, dead pixels, ghosting, and burn‑in acceptability during intake post‑repair checks.
You can also verify proximity wake, auto‑brightness response, and earpiece output without moving the customer’s speaker each time. The assembly drops in with standard p2 and y000 fasteners, connects with two fpc plugs, and lets you run speaker, sensor, and display tests using your preferred diag suite or the built‑in apple diagnostics screens.
Included Parts And Service Notes
Included: refurbished front display assembly in black, touch digitizer, bonded frame, and pre‑ earspeaker unit with sensor support. Not included: front camera, original face id sensor flex, and perimeter adhesive, which you should add if you are converting from bench testing to a final install.
Best practice is to back up true tone data from the customer’s original screen, test with this diagnostic unit, and then write back settings to the final display if needed. Always transfer the original face id sensor flex to retain biometric functionality, and perform a proximity and earpiece audio test call before you close.
