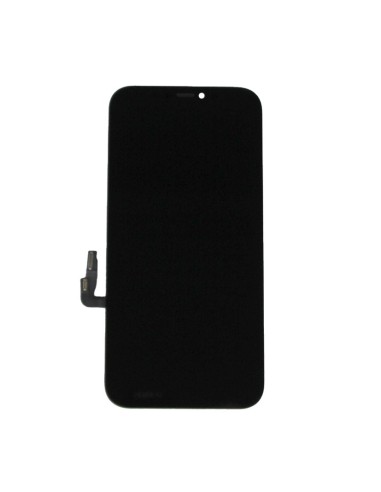

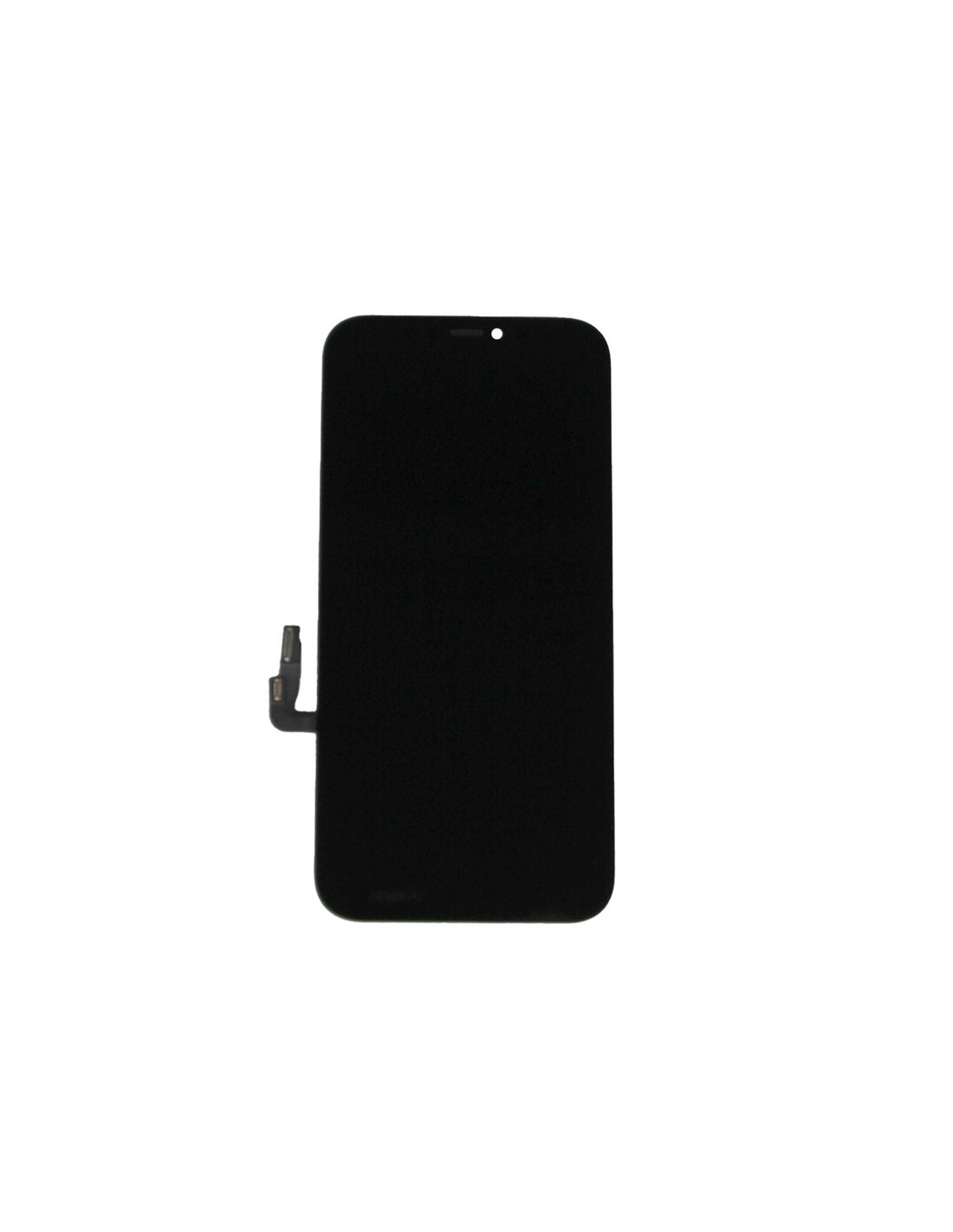

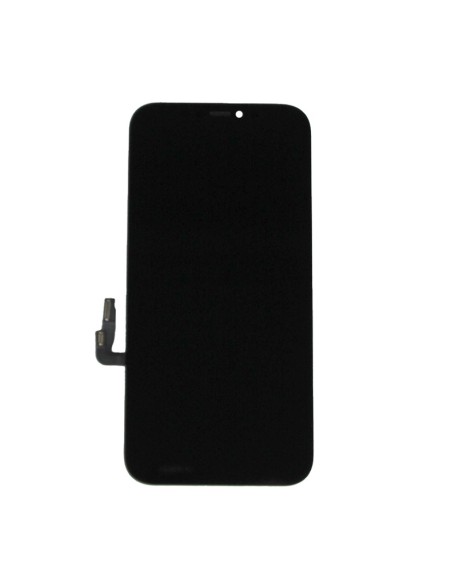

Refurbished Diagnostic Screen For iPhone 12/12 Pro (Incl. Earspeaker)
Get rapid bench verification with the iPhone 12/12 Pro - Black - Refurbished Diagnostic Screen (Incl. Earspeaker), built for quick swap testing and intake triage. It fits iPhone 12 and iPhone 12 Pro and drops straight onto the 6.1 inch platform for fast display, touch, and earpiece audio checks. Model ids are A2403 and A2407, and the assembly arrives with earspeaker pre-mounted so you can confirm call audio and seating without moving parts from the donor device.
The unit is refurbished for diagnostic and refurbishment workflows, combining a clear OLED panel with a sturdy frame and clean mounting points. The notch, camera, and sensor apertures are precisely aligned to speed up temporary installs on open devices during fault isolation and quality control.
Key Technical Data And Display Performance
Display size is 6.1 inches OLED with Super Retina XDR characteristics. Resolution is 2532 × 1170 at 460 ppi, and refresh rate is 60 Hz for accurate baseline behavior during tests. Typical contrast ratio is 2,000,000:1, and typical brightness is 625 nits with HDR peaks up to 1200 nits. Color is P3 wide gamut for dependable grading of whites, skin tones, and UI elements across bench lighting. Glass includes an oleophobic coating, and the in‑cell capacitive digitizer delivers responsive multi‑touch across the full panel.
True Tone is supported when you restore the original display calibration data with an EEPROM programmer. Touch response is consistent to the edges for gesture checks, swipe diagnostics, and keyboard trials, while the polarizer maintains readability under strong light and angled viewing.
Built For Fast Bench Workflows
Use it to separate panel faults from board faults, confirm no‑display or no‑touch cases, and grade devices during trade‑in or RMA processing. Plug in, boot, and run quick checks for ghost touches, dead zones, stuck pixels, color cast, and faint line artifacts. The pre‑installedpeaker lets you validate earpiece audio and vibration resonance during call tests without extra assembly time.
Each unit is function tested for pixels, brightness, uniformity, and touch before packing. Protective films, ESD‑safe packaging, and a clean frame help keep the assembly shelf‑ready, while a scannable label supports inventory and batch tracking in busy repair environments.
Compatibility, Fit, And What’s Included
Fits model is iPhone 12, iPhone 12 Pro. Model ids are A2403 and A2407. Color is black to match the original front appearance on both devices. Connector layout follows the OEM FPC arrangement for display and touch on the 6.1 inch platform.

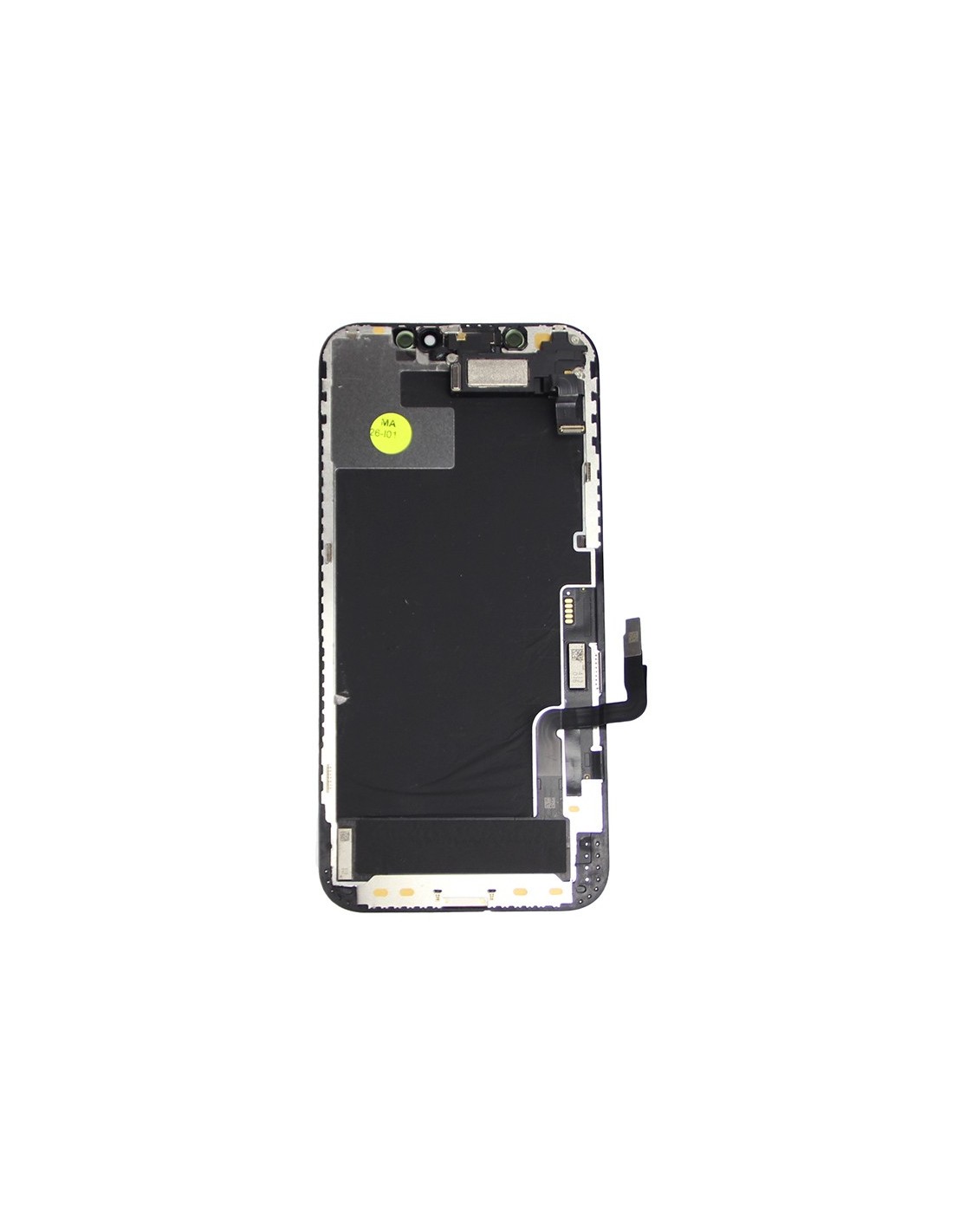

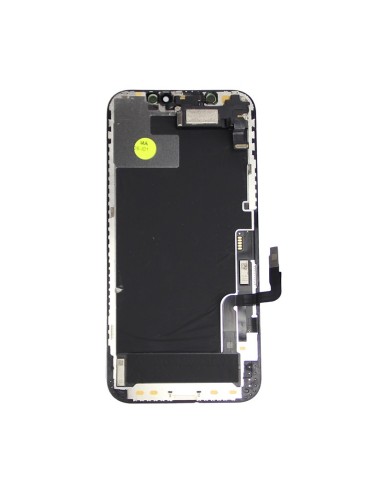

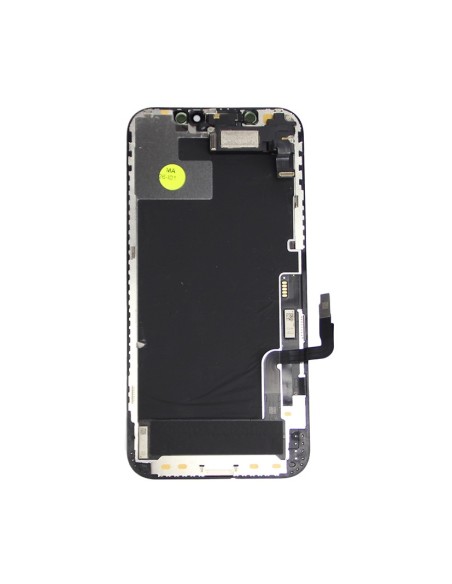

Included are the refurbished display assembly, a pre‑mounted earspeaker, installed mesh, and a frame ready for adhesive. Face ID components reside on the original sensor flex and are not part of this diagnostic assembly.
