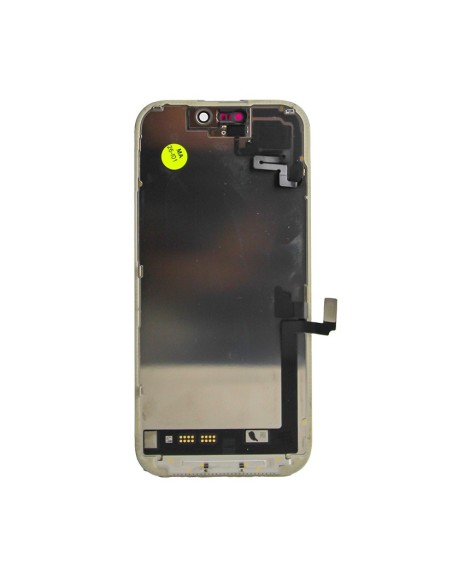

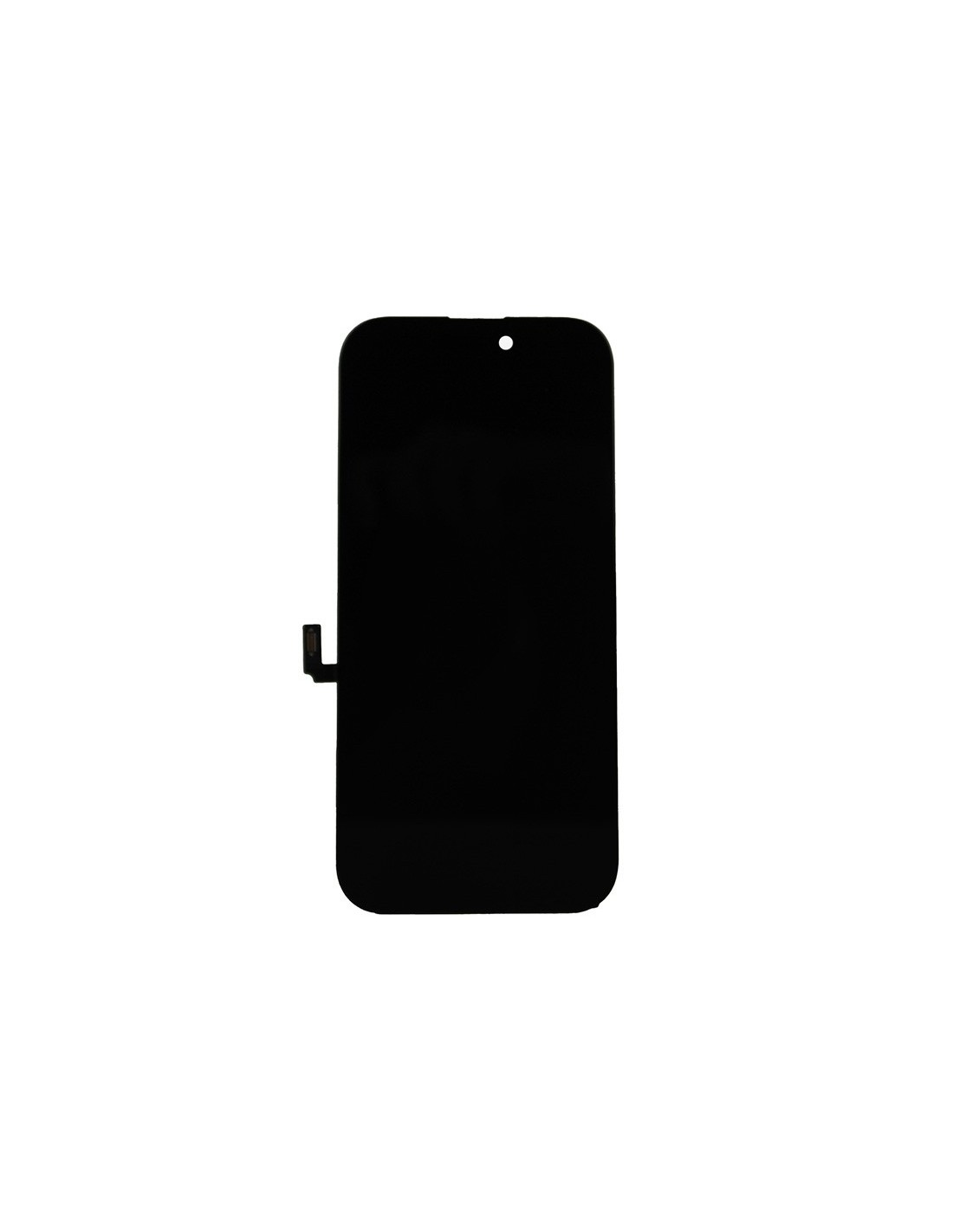

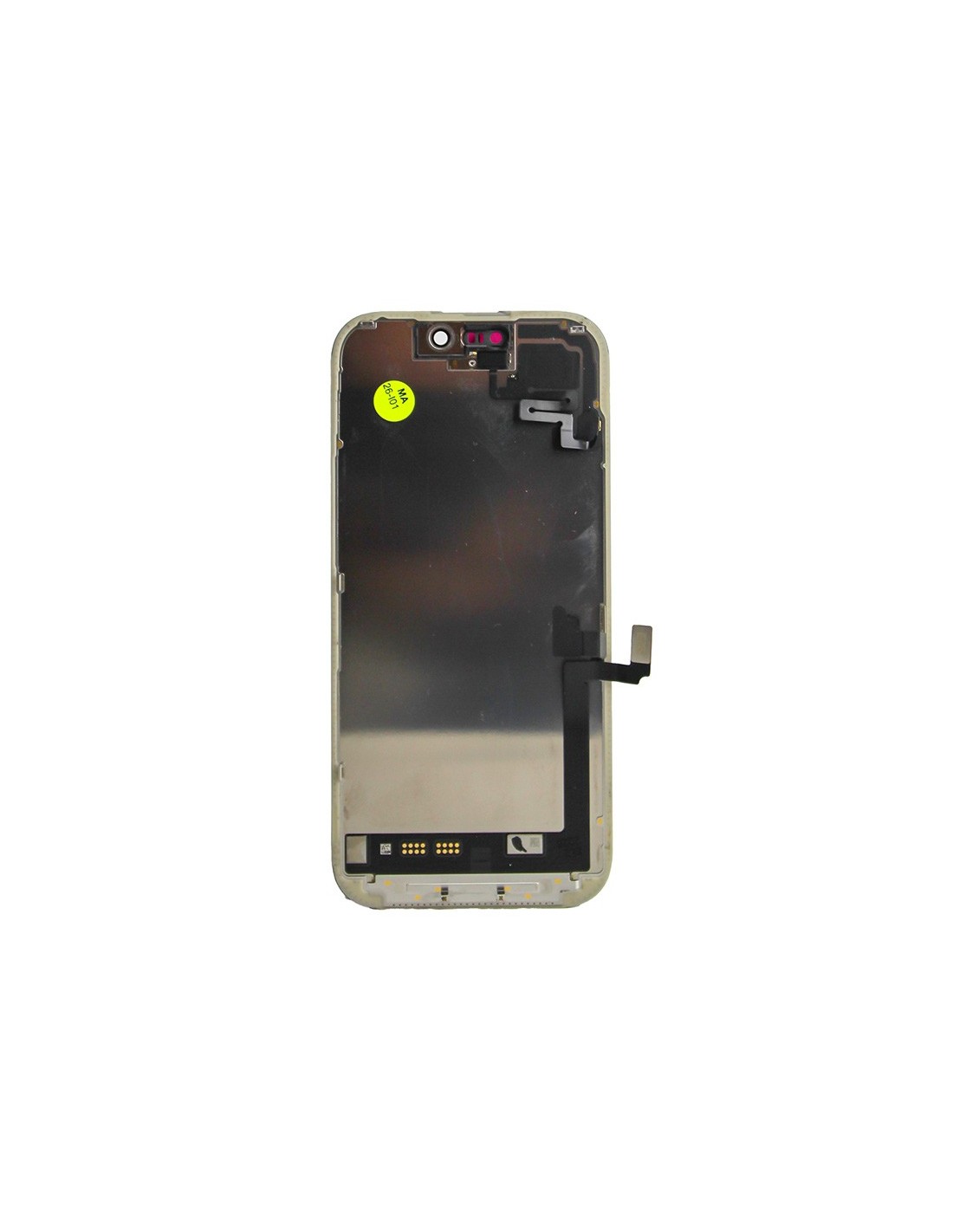

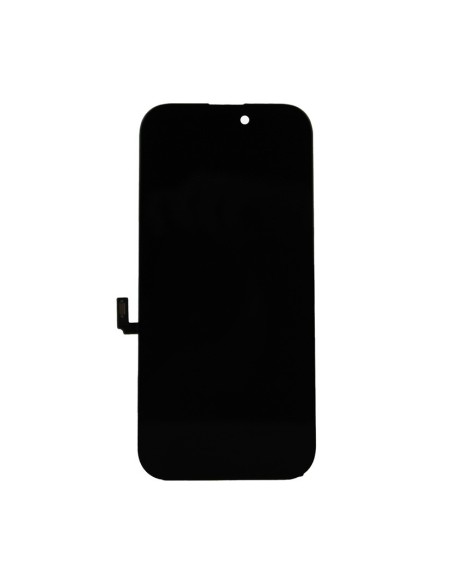

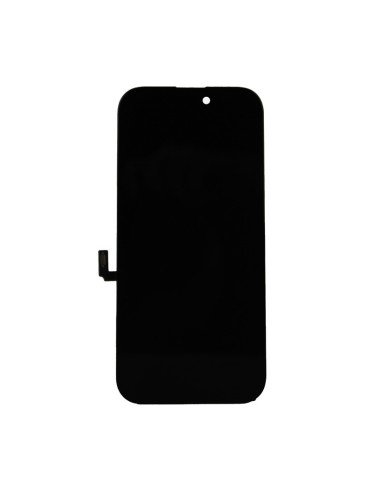

Original iPhone 17 - Black - Pulled Diagnostic Screen
This Is An Original iPhone 17 - Black - Pulled Diagnostic Screen sourced from working units and ideal for fast fault isolation, data access, and swap testing on the bench. This Display Fits Model iPhone 17 and aligns with model id A3520 for precise connector, bracket, and flex compatibility. This Unit preserves the native color profile and supports True Tone when copy-calibrated from the donor device using a programmer. This Assembly is a bare display with bonded digitizer and does not include the ear speaker, front camera, or Face Id sensor array, which you will transfer from the original device.
This Screen is well suited for board-level diagnostics, temporary replacements during micro-soldering workflows, and triage where speed matters more than cosmetics. This Variant features a black bezel and frame finish, ensuring a clean look for temporary or final installs depending on your workflow. This Part is suitable for European repair shops and refurbishers who need consistent fit, stable touch response, and native system compatibility without code mismatches on A3520 boards.
Key technical data for iPhone 17 repairs
This Display maintains the native resolution and refresh rate supported by iPhone 17, so interface timing and touch latency remain unchanged during diagnostics. This Assembly includes the integrated capacitive touch layer, matching iPhone 17 touch controller protocols and gesture performance. This Unit uses the original iPhone 17 display flex layout, mounting points, and screw locations for A3520, ensuring straightforward alignment with the midframe and logic board. This Screen supports True Tone restoration via data transfer from the original display’s eeprom, preserving ambient color adaptation when paired. This Assembly arrives without pre-applied frame adhesive, so fresh iPhone 17 bezel adhesive is recommended for any permanent close-up. This Part is compatible only with iPhone 17 (A3520) and is not intended for other models.
This Screen is suited to standard post-install checks, including multi-touch grid, edge sensitivity, brightness sweep, color uniformity viewing on solid backgrounds, and backlight stability testing. This Display supports haptic touch interactions as provided by the system and does require additional activation or pairing beyond sensor transfers and True Tone data restore.
Practical use cases for repair benches
This Screen enables rapid fault triage by confirming whether a no-image, lines, or ghost touch symptom follows the display or remains on the logic board. This Assembly is valuable for micro-soldering validation after connector reflow or pmic-related work, allowing you to confirm stable image, backlight, and touch before final reassembly. This Part streamlines data extraction on damaged units where the original panel is cracked or un, letting you authenticate the device, disable find my when appropriate, and complete transfers. This Display also supports intake diagnostics for Rma decisions, grading workflows, and temporary loaner builds where cosmetics are secondary.
This Screen is a strong choice for shops standardizing on iPhone 17 service, giving you a reliable bench reference panel that mirrors factory behavior. This Approach reduces repeated open-close cycles on a customer’s original display and helps isolate faults without risking additional damage.
Handling and installation notes for iPhone 17 display swaps
This Installation should always begin with battery disconnection, connector inspection under magnification, and gentle seating of the display flex with even pressure. This Process requires transferring the ear speaker and sensor bracket to retain Face Id and proximity functions, followed by True Tone data copy if you want ambient color behavior to match the original. This Job benefits from fresh frame adhesive, even torque on screws, and final qc using solid color test cards to check for uniformity. This Workflow helps ensure a clean seal, stable touch, and a result that passes shop-level quality checks on the first attempt.
This Pulled Diagnostic Screen is built for fast, confident service on iPhone 17 (A3520) where accuracy and repeatability matter. This Part delivers native fit, native signaling, and the flexibility you need for both quick triage and longer refurb cycles.
