OEM quality iPhone 15 Plus docking station for reliable charging and data

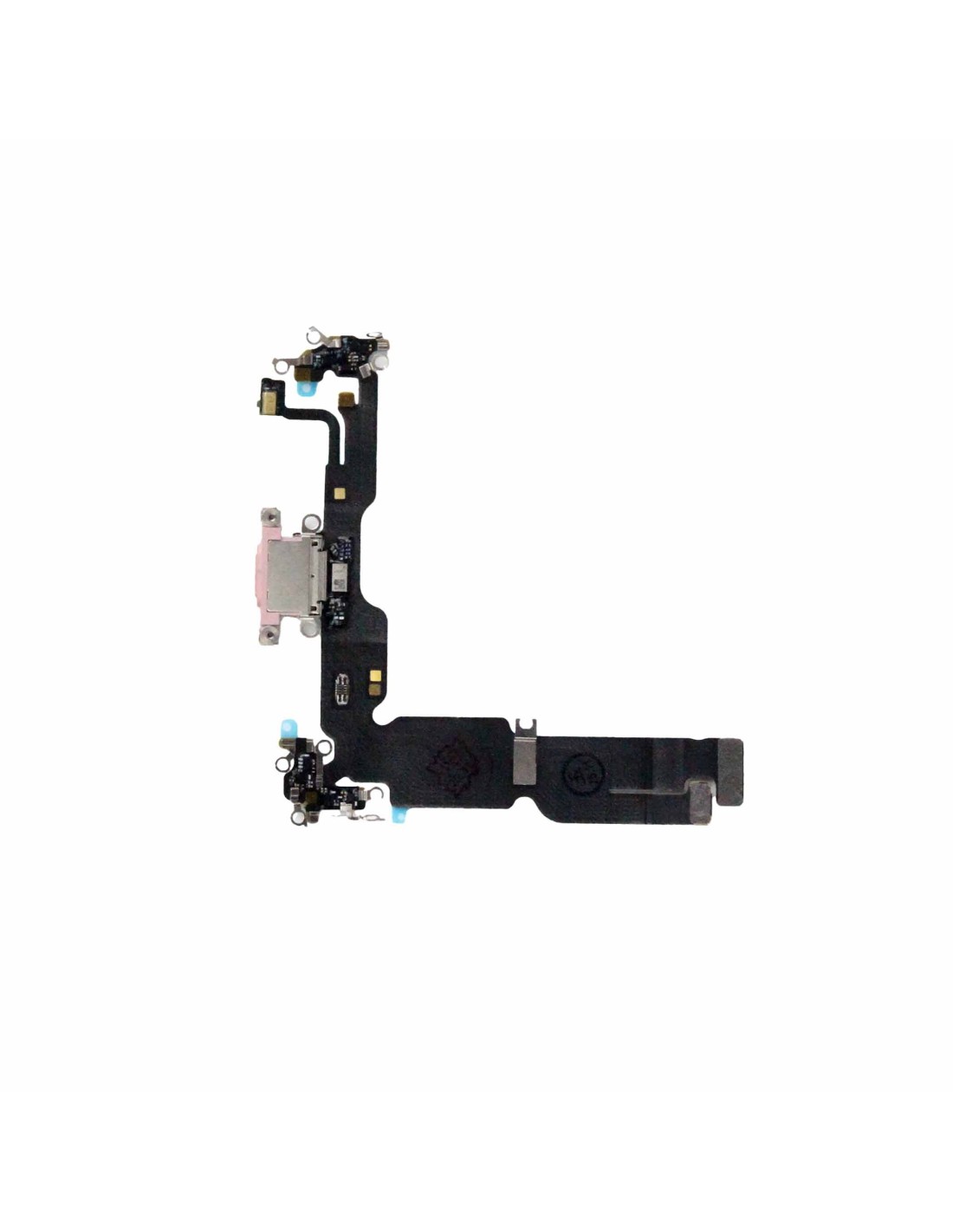

This OEM quality iPhone 15 Plus Docking Station is the complete USB‑C dock connector flex assembly that restores charging, data sync, and accessory connectivity. It is built to match factory fit and signal integrity, giving you stable performance for everyday repairs and high‑volume refurbishment.
The assembly integrates the USB‑C charging port and the primary bottom microphone on a single flex, and it mates precisely with the speaker module and lower brackets. It supports 2.0 data up to 480 Mbps as per iPhone 15 Plus capabilities, USB Power Delivery fast charging with device draw up to 27 W, and wired CarPlay when paired with supported head units. It passes DisplayPort alt mode from the host for external display output when used with a compatible adapter, enabling up to 4K at 60 Hz subject to host and adapter limits. Can be used with model A3094.
Technical data for repair and refurbishment workflows
Part type is dock connector flex cable assembly with USB‑C receptacle and integrated primary microphone. Connector interface to the logic board uses factory‑style FPC connectors with gold‑plated contacts for low resistance and long‑term durability. The port frame includes a pre‑molded rubber gasket to help maintain dust and moisture resistance when installed with fresh perimeter adhesive. The microphone features an acoustic mesh and gasket to preserve bottom mic clarity for calls and voice commands. The mechanical layout follows the original screw pattern for the speaker enclosure, taptic bracket, and lower shields for straightforward alignment.
Electrical performance supports USB 2.0 data up to Mbps, USB Power Delivery profiles negotiated by the handset with typical peak draw up to 27 W, and pass‑through for wired CarPlay and supported USB‑C accessories. External video is supported via DisplayPort alt mode over USB‑C when connected to a suitable adapter or dock, with practical output up to 4K at 60 Hz depending on the chain. The flex is ESD safe packaged, visually inspected, and continuity tested on critical lines including VBUS, CC, D+, D−, SBU, mic, and ground.
Installation notes
Compatibility is iPhone 15 Plus only and is not cross‑compatible with iPhone 15, iPhone 15 Pro, or iPhone 15 Pro Max. No pairing or calibration is required after installation, and all functions are plug‑and‑play when the connectors are seated correctly. The finish, mounting tabs, and port position match the original housing to keep case and accessory fit consistent.
Install with P2 pentalobe, Y000 tri‑point, Phillips, and st drivers, and replace the display adhesive to retain the seal. Transfer any small brackets and screws in their original locations to avoid ground issues and noise on the microphone line. Inspect and clean the speaker cavity and port area for debris before reassembly to protect the new port gasket. Perform a post‑repair checklist that includes charging current verification with a USB‑C meter, data sync on a Mac or PC, microphone test in voice memos, and an external display check with a known good adapter. Use this assembly to resolve symptoms such as no charge, intermittent charge, accessory not supported, muffled bottom mic audio, or unreliable wired CarPlay, while maintaining OEM‑level fit and function for your customers.
