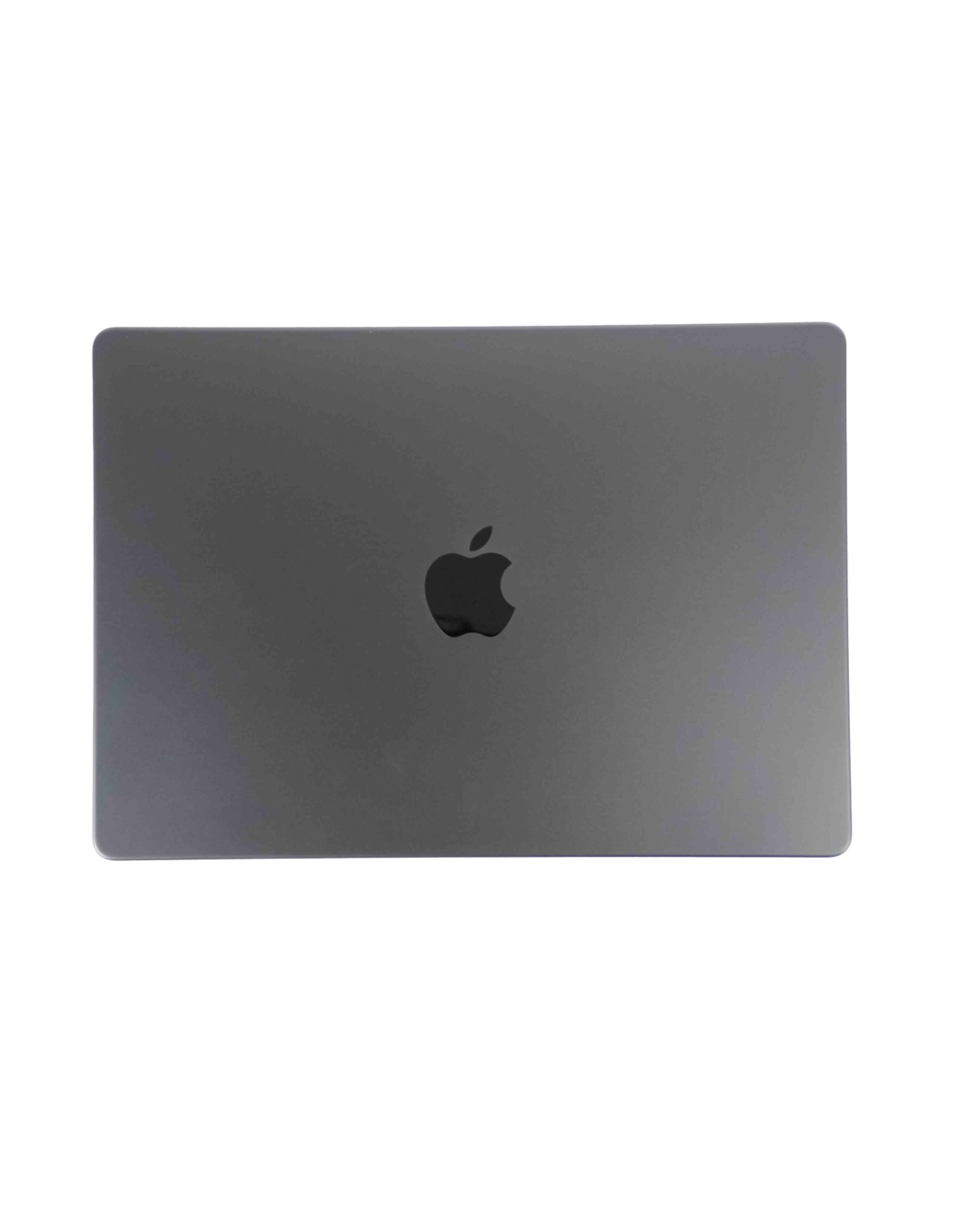

MacBook Complete A2992 Screen - Space Black For Fast, Clean Swaps
This is a complete top‑lid assembly for MacBook Pro 14‑inch A2992 in Space Black, ready to drop in with hinges, cables,, and camera pre‑installed. This unit restores a cracked, dim, or liquid‑damaged display to factory look and function without transferring small parts.
The panel is the 14.2‑inch Liquid Retina XDR display at 3024 × 1964 and 254 ppi with local‑dimming mini‑led backlight. The screen supports ProMotion up to 120 Hz, P3 wide color, True Tone, 1,000 nits sustained fullscreen HDR, 1,600 nits peak HDR, and up to 600 nits SDR, with an anti‑reflective coating and 1,000,000:1 contrast for deep blacks and clean highlights.
Compatibility, Specs, And Included Parts
Compatibility covers MacBook Pro 14‑inch (2023) model A2992 in Space Black, typically the M3 Pro and M3 Max variants that shipped in this color. This assembly is not cross‑compatible with A2442 or earlier 14‑inch models, and it will not color‑match Silver or Space Gray units.

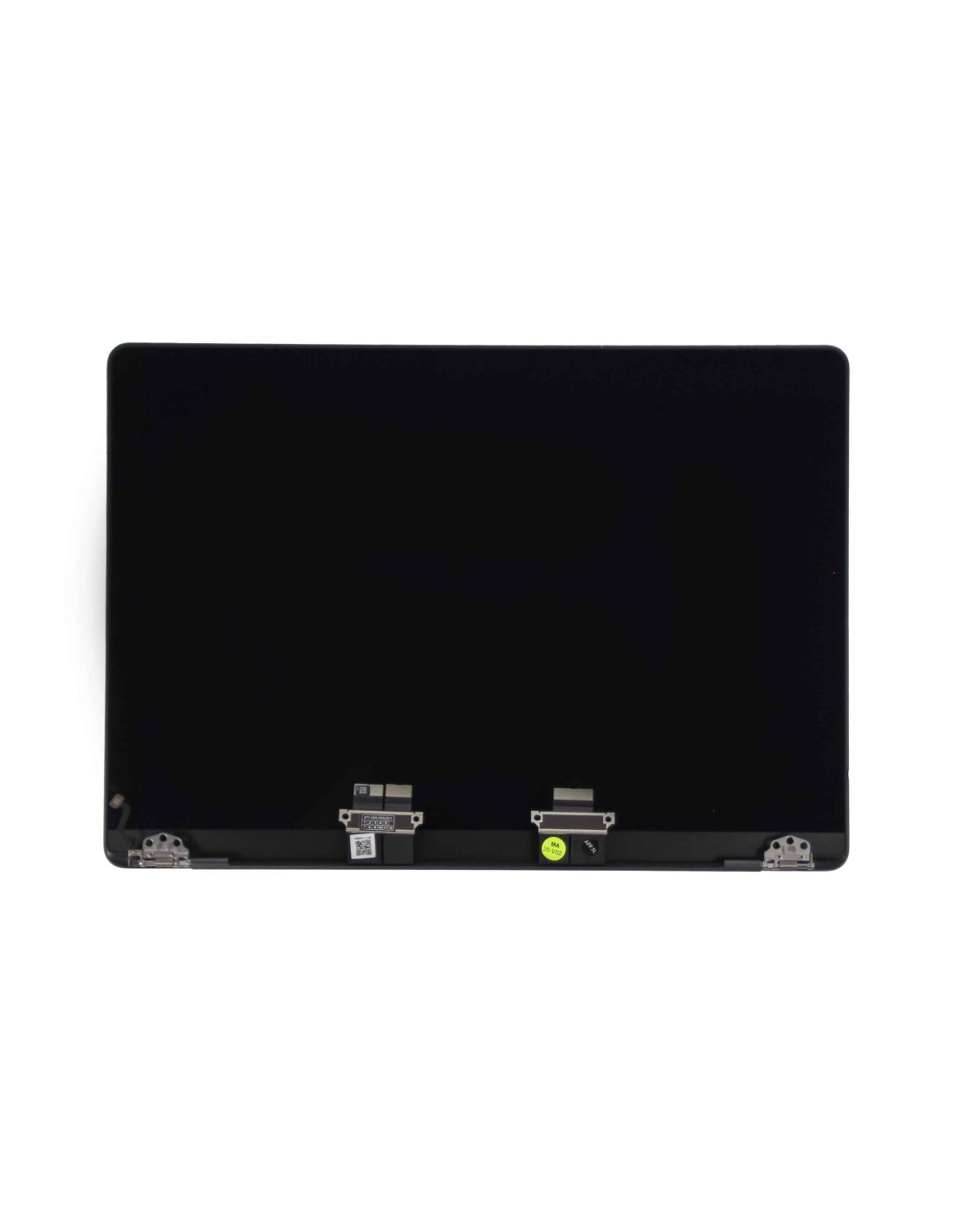

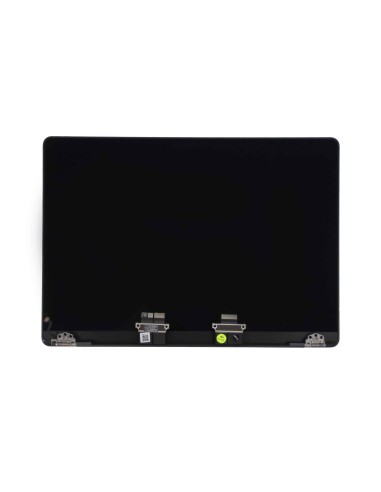

Key data includes a 14.2‑inch diagonal active area, 3024 × 1964 native resolution, 254 ppi density, variable 24–120 Hz refresh, P3 wide color with True Tone, HDR with 1,000 nits and 1,600 nits peak, approx 600 nits SDR, mini‑led local dimming, anti‑reflective surface, and a 1080p FaceTime HD camera in the notch with ambient light sensor. The assembly includes the Space Black anodized lid shell, cover glass with laminated LCD, hinge pair, clutch cover, display flex cables, left and right Wi‑Fi/Bluetooth antenna modules, camera and light sensor, rubber perimeter gasket, and mounting brackets. The microphone array is not part of the lid on this generation and remains in the main.
Installation Notes And Bench Testing For Repair Shops
Power down, remove the bottom cover, disconnect the battery, and release the display flex and antenna leads before unbolting the hinge stack. Support the lid during removal to protect the clutch hinge threads, and torque hinge screws evenly during install to maintain gap and lid alignment. Route antenna and display cables in their channels to prevent pinching, and verify that the hinge stops clear the clutch cover before final tightening.
After installation, run a quick bench checklist: to confirm image, backlight uniformity, and pixel integrity at native resolution. Toggle ProMotion and set 120 Hz to verify motion performance. Open a HDR test clip to confirm peak brightness behavior and dimming transitions. Check True Tone and ambient sensor response under different lighting. Test the 1080p camera feed and on‑lid antennas by running a Wi‑Fi and Bluetooth link check. Inspect color match of the Space Black finish and confirm even bezel gasket seating along all edges.
Use Cases, Service Strategy, And Handling
Choose this complete assembly when the original panel has impact damage, severe backlight bleed, failed local dimming, Liquid Retina XDR artifacts, or lid deformation affecting hinge geometry. Use it as a clean swap for high‑throughput refurb lines where part transfer time and rework risk must be minimized.
Handle the unit with nitrile gloves and a micro‑dust environment to protect the anti‑reflective surface and gasket seal. Store flat in the protective tray, avoid magnet contact with the Hall area near the hinge, and only peel shipping films after final torque and function checks. Record the host serial and repair ID on your job ticket so future service history links to this MacBook Complete A2992 Screen - Space Black replacement.
The screens are covered with a 2-year warranty. The warranty does not cover man-made damage.
