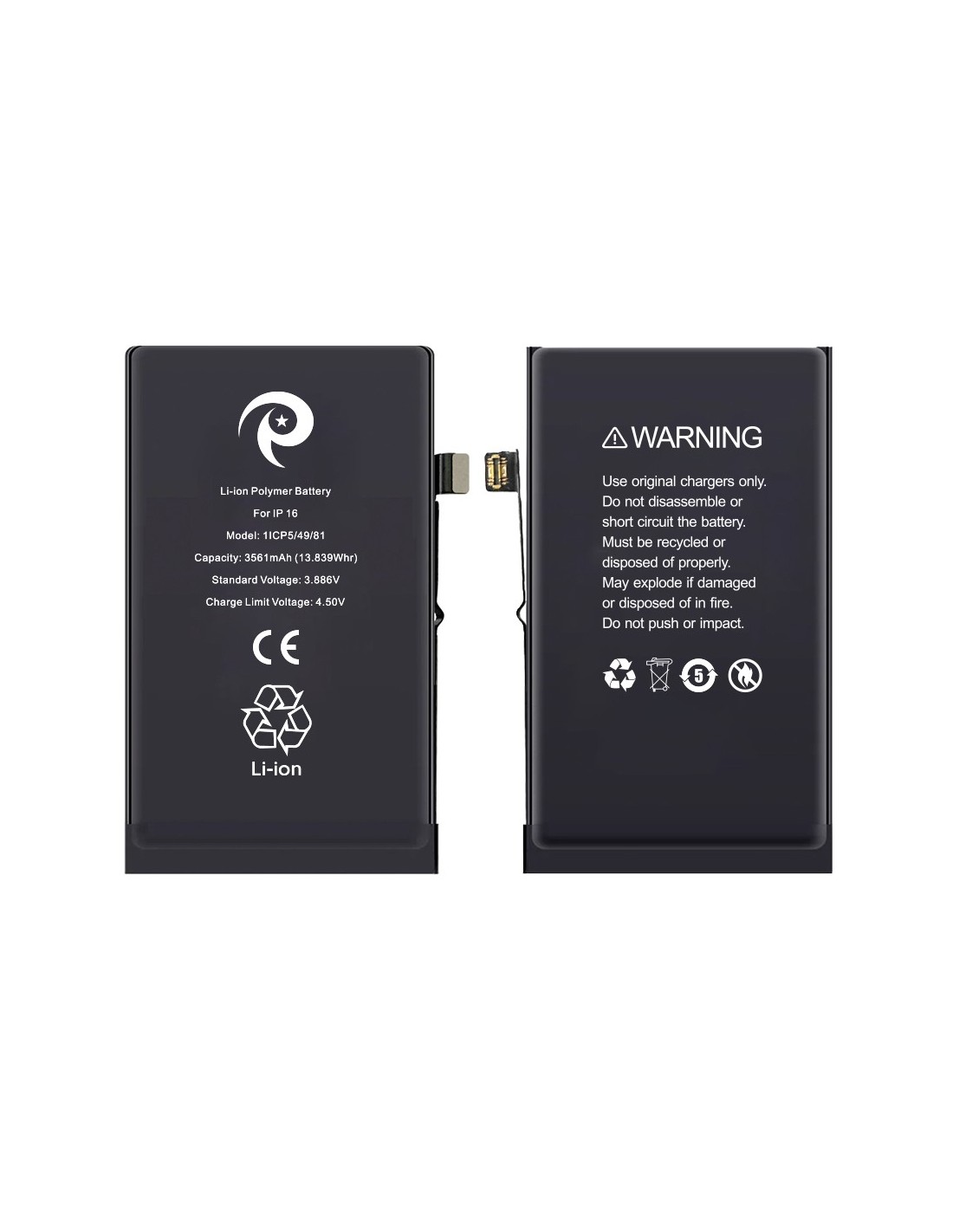

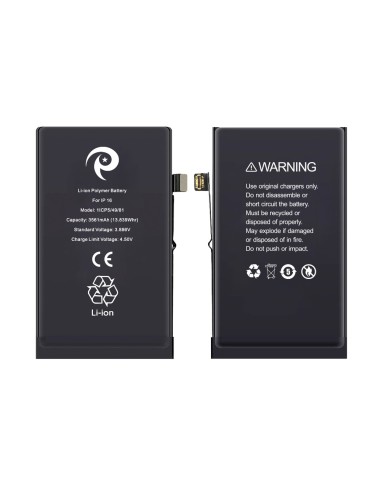

OEM Quality iPhone 16 Battery For Reliable Repairs
Choose iPhone 16 Battery - OEM Quality when you want predictable performance, accurate health reporting, and a clean drop‑in fit. This cell is built to match the original footprint, connector position, and bracket clearances, so you finish jobs faster and avoid reopens caused by poor tolerances. The integrated gas gauge ic communicates correctly with iOS for battery health metrics, cycle count, and charge state, helping you deliver confident handovers to your clients.
Technical Specs And Compatibility
Fits model: iPhone 16. Model id: A3290. Cell type: lithium‑ion polymer, single cell. Nominal voltage: 3.82 v. Full charge voltage: 4.35 v. Protection: integrated over‑charge, over‑discharge, over‑current, and thermal protection with ntc sensor. Fuel gauge: embedded ic for state‑of‑charge and battery health reporting compatible with iOS. Connector: factory‑fit fpc for iPhone 16 mainboard. Form factor: oem‑matched footprint and tab geometry for bracket and speaker clearances. Compliance: un 38.3,, rohs, and reach for transport and eu market requirements. Packaging: esd‑safe pouch with shock protection for safe inbound logistics.
Quality grade: oem quality with cell lot traceability and multi‑point qc, including open‑circuit voltage check, internal resistance screening, cycle simulation, and micro‑current leakage test. Operating range: typical smartphone ambient range used in service centers. Calibration: supports standard post‑install calibration so iOS can render accurate maximum capacity and peak performance capability. Identification: printed batch code on flex for rma trace.
Installation Notes For Repair Benches
Power down the device, remove the pentalobe screws, and disconnect the battery before any other flex. Use controlled heat to soften legacy adhesive and extract with steady tension on the pull tabs while keeping the cell flat. Clean the housing with isopropyl alcohol, align the new adhesive, and seat the battery without creasing the pouch or stressing the flex near the connector. Reconnect, reassemble, and run a full charge followed by a normal discharge to allow health metrics to stabilizep>
Avoid piercing, folding, or prying under the cell, and do not transfer dented or swollen packs forward in your workflow. Use a y000 driver for internal fasteners and verify standoff torque so the shield does not pinch the flex. Finish with a brief functional check: boot, charger recognition, percentage climb under load, and battery health visibility in settings. Record the model id A3290 on your job ticket for traceability.
Why This iPhone 16 Replacement Works For Shops
You standardize on one sku that fits iPhone 16 cleanly, behaves correctly with iOS, and arrives ready for eu‑bound logistics. You reduce comebacks with qc‑screened cells and predictable health reporting that your customers can see the moment they open settings. You keep installs fast thanks to oem‑matched geometry, durable pull tabs, and a reinforced flex that tolerates one re‑seat if needed during troubleshooting.
You can stock confidently for pan‑european deployments with un 38.3 documentation and typical ce and rohs compliance. You can integrate it into existing intake and rma processes using the printed batch code and consistent test outcomes across lots. You get a practical, bench‑friendly iPhone 16 Battery - OEM Quality that supports steady turnaround and clear post‑repair diagnostics.
