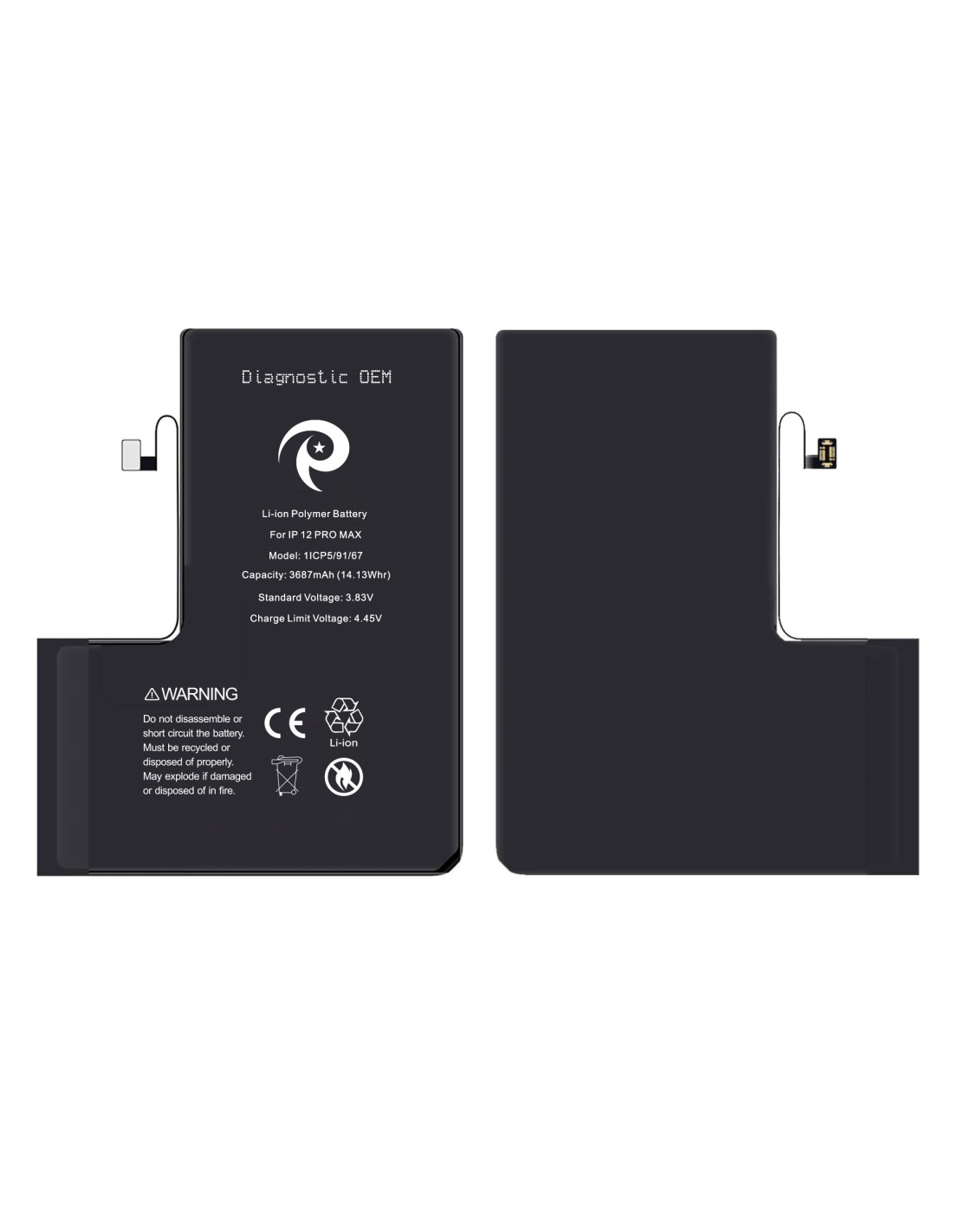

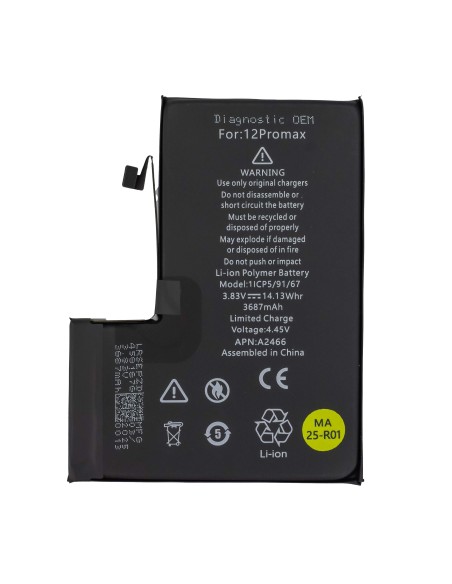

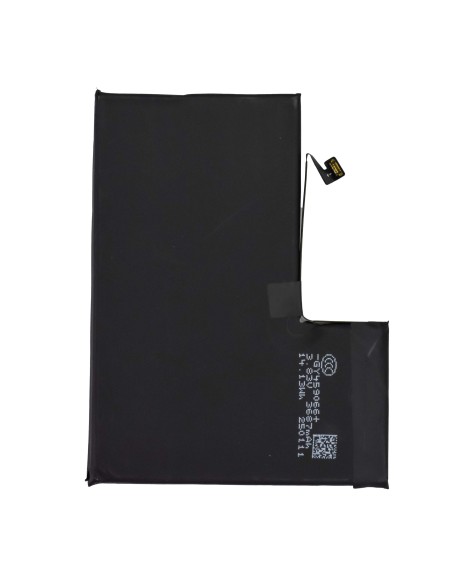

iPhone 12 Pro Max - Diagnostic OEM Battery For Bench And Field Repairs
Get consistent, repeatable power performance with the iPhone 12 Pro Max - Diagnostic OEM Battery engineered for accurate state-of-charge reporting and stable output during repair, triage, and refurbishment. Fits model: iPhone 12 Pro Max. Delivers reliable startup on cold boards, dependable peak current for camera and modem spikes, and clean telemetry so you can validate shutdowns, charging behavior, and overall stability without chasing power anomalies.
it to speed intake diagnostics, power devices during board-level work, run dfu restores, verify charging ports, and stress test under real load before sealing a unit. Expect precise fuel gauge data, quick recovery after current surges, and behavior that mirrors the factory pack so your results translate to post-repair handover.
Key Technical Data And Interfaces
Chemistry is lithium‑ion polymer with an integrated OEM battery management system and thermistor. Typical capacity is 3687 mAh with an energy rating of 14.13 Wh. Nominal voltage is 3.83 V with a charge cut‑off around 4.35 V managed by the device. Internal resistance is service‑grade low for stable peak performance metrics. Form factor and connector match the iPhone 12 Pro Max battery bay and flex layout for a direct fit on benches and in final assemblies.
The fuel gauge communicates charge, cycle count, voltage, current, temperature, and capacity data to iOS for accurate battery health evaluation. Protection features include overcharge, overdischarge, overcurrent, and short‑circuit safeguards controlled on the battery board. Compliance aligns with UN 38.3, CE, and RoHS requirements to support workshop stocking and cross‑border shipping routines.
Workflow Advantages For Repair Shops And Refurbishers
Swap in iPhone 12 Pro Max - Diagnostic OEM Battery to confirm power rail integrity, isolate high draw components, and reproduce intermittent shutdowns that only appear under camera, flash, or 5g load. Maintain throughput by reusing the same pack across multiple devices during triage, then decide to install new adhesive and seal for permanent placement or return the unit to the queue with a verified diagnosis.
Pair it with your dc power supply and inline meter for comparative draw analysis at boot, idle, and sleep, or use it during software reinstalls where stable voltage under sustained current is vital. Calibrate readings after installation by charging to 100 percent, letting the device rest on charge, and then performing one normal discharge cycle so iOS aligns estimated capacity with actual full charge capacity.
Installation, Handling, And Best Practices
Follow standard safety steps by powering down the device, isolating the battery during part swaps, and avoiding flex strain at the connector. Use fresh battery adhesive and a perimeter seal if the pack will remain installed after testing, and apply even pressure across the L‑shaped cell seating. Keep operating temperatures between 0–35 °c and store around 40–60 percent state of charge in a cool, dry place to minimize capacity fade.
Inspect for debris or bracket distortion in the battery bay before installation to prevent puncture risk, and verify charge acceptance with a known good usbc‑pd charger. Record baseline metrics such as open‑circuit voltage, peak current during camera launch, and charge curve behavior so future returns can be benchmarked against a known good dataset using the same Diagnostic OEM Battery.
