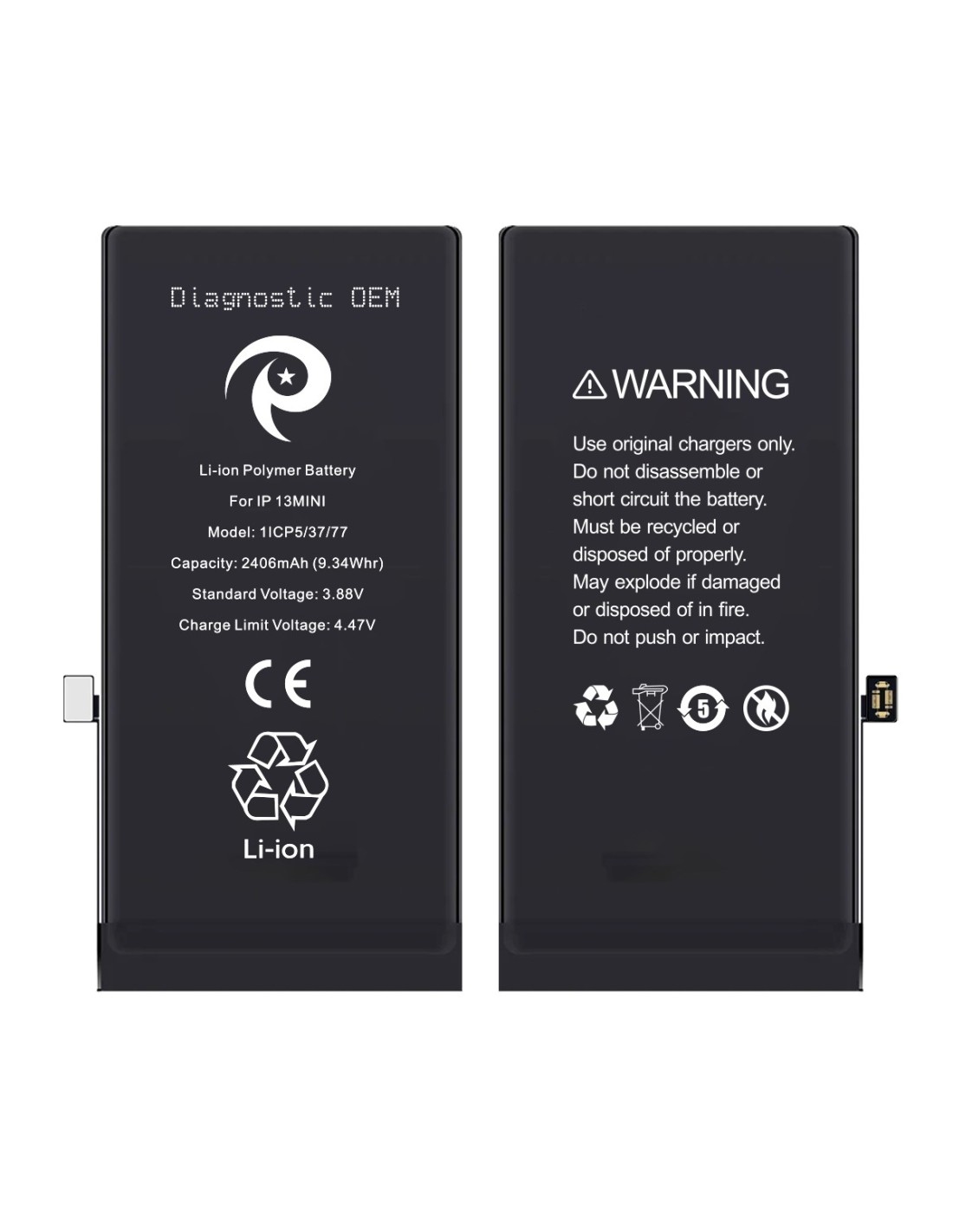

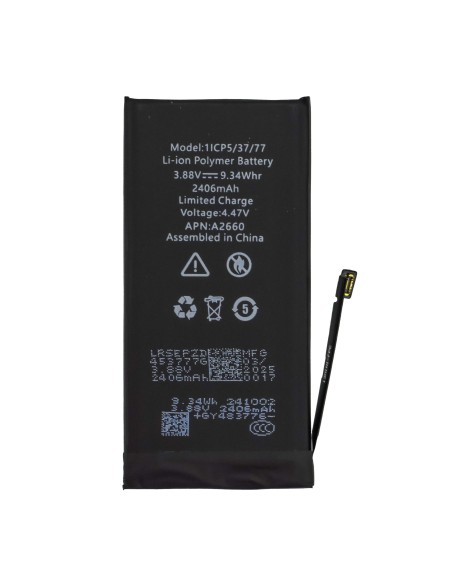

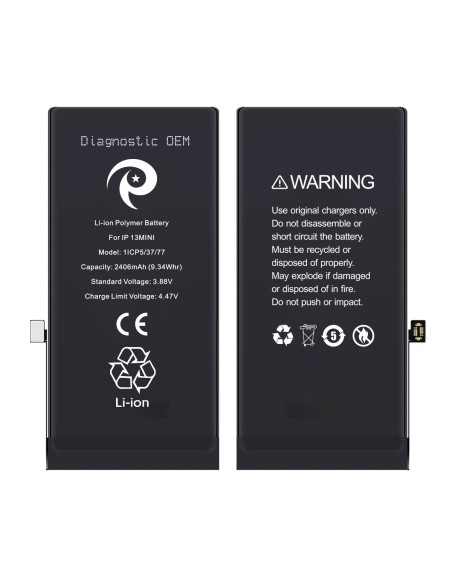

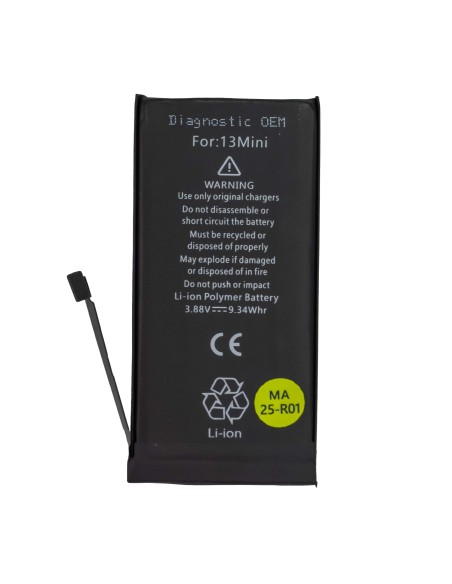

Diagnostic OEM Battery For iPhone 13 Mini
Your iPhone 13 Mini - Diagnostic OEM Battery Delivers Stable, Repeatable Results For Bench Testing, Fast Triage, And Reliable Post-Repair Verification. This Pack Is Built To Match The Original Footprint, Connector Alignment, And Mounting Points Of The iPhone 13 Mini, So You Drop It In, Boot The Device, And Immediately Validate Power, Charging, And Peak-Load Behavior. The Diagnostic Format Lets You Identify Power-Related Faults Quickly, Distinguish Battery And Board Issues, And Shorten Turnaround On Intake And Refurbishing Lines.
Your Pack Uses A High-Quality Lithium-Ion Polymer Cell With An Integrated Fuel-Gauge Bms That Communicates With Ios For Accurate State Of Charge Reporting. When You Pair Or Transfer Original Battery Data During Service, Ios Can Show Battery Health And Cycle Count As Expected, Making Post-Repair Checks Straightforward. The Flex Cable Is Shielded And Cut To Length For The iPhone 13 Mini Layout, And The Housing Surfaces Are Ready For New Adhesive Strips When Moving From Diagnostic To Final Install.
Technical Data And Compatibility
Your Model Id Is A2628, And The Pack Fits Model iPhone 13 Mini Only. Your Battery Uses A Single-Cell Li-Ion Polymer Design With An Protection Circuit And Fuel-Gauge Controller On The Flex. Your Connector Mates Directly To The iPhone 13 Mini Logic Board Battery Socket, And The Assembly Supports The Fast-Charge Profiles Used By This Device. Your Pack Ships At A Storage Level Suitable For Service Work And Can Be Calibrated In Device After Installation.
Your Operating Use Is Intended For iOS Devices Running iPhone 13 Mini Hardware, And Cross-Compatibility With Other iPhone 13 Family Models Is Not Supported Due To Form Factor And Connector Differences. Your Recommended Workflow Includes Verifying Standby Drain, Peak Current Response During Boot, And Charging Handshake Before Closing The Device. Your Battery Supports Hundreds Of Cycles Under Normal Use, And Storage Should Be Kept In A Cool, Dry Place At A Partial State Of Charge.
Repair Workflow And Installation Notes</2>
Your Service Process Starts With P2 Pentalobe Bottom Screws, Display Separation, And Battery Disconnect Before Any Other Step. Your Adhesive Pull Tabs Are Accessible After Removing The Loudspeaker And Taptic Engine, Making Extraction Straightforward On The iPhone 13 Mini. Your Best Practice Is To Replace The Adhesive Strips On Reassembly, Reseat The Battery Connector With ESD Care, And Reseal The Housing With Fresh Perimeter Adhesive For Water-Ingress Resistance.
Your Post-Install Checks Should Include A Full Boot, Charger, Thermal Stability During A Short Load Test, And A Two-Step Calibration Cycle From 100% To Shutoff And Back To 100%. Your Data Retention For Battery Health Requires Migrating The Original Bms Data Or Using Your Preferred Programmer During Final Assembly, Which Preserves Cycle Count And Maximum Capacity Reporting In Ios. Your Pack Is Ideal For Intake Diagnostics, Same-Day Repairs, And Refurb Lines Where Fast, Repeatable Power Testing On iPhone 13 Mini Devices Is Essential.
