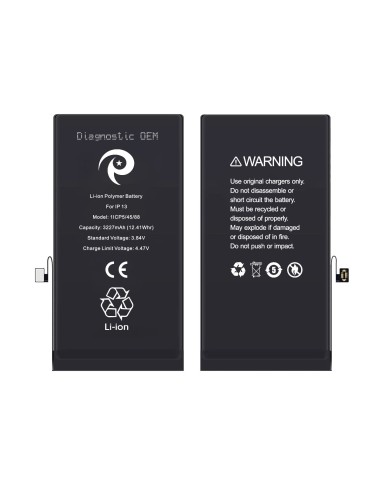

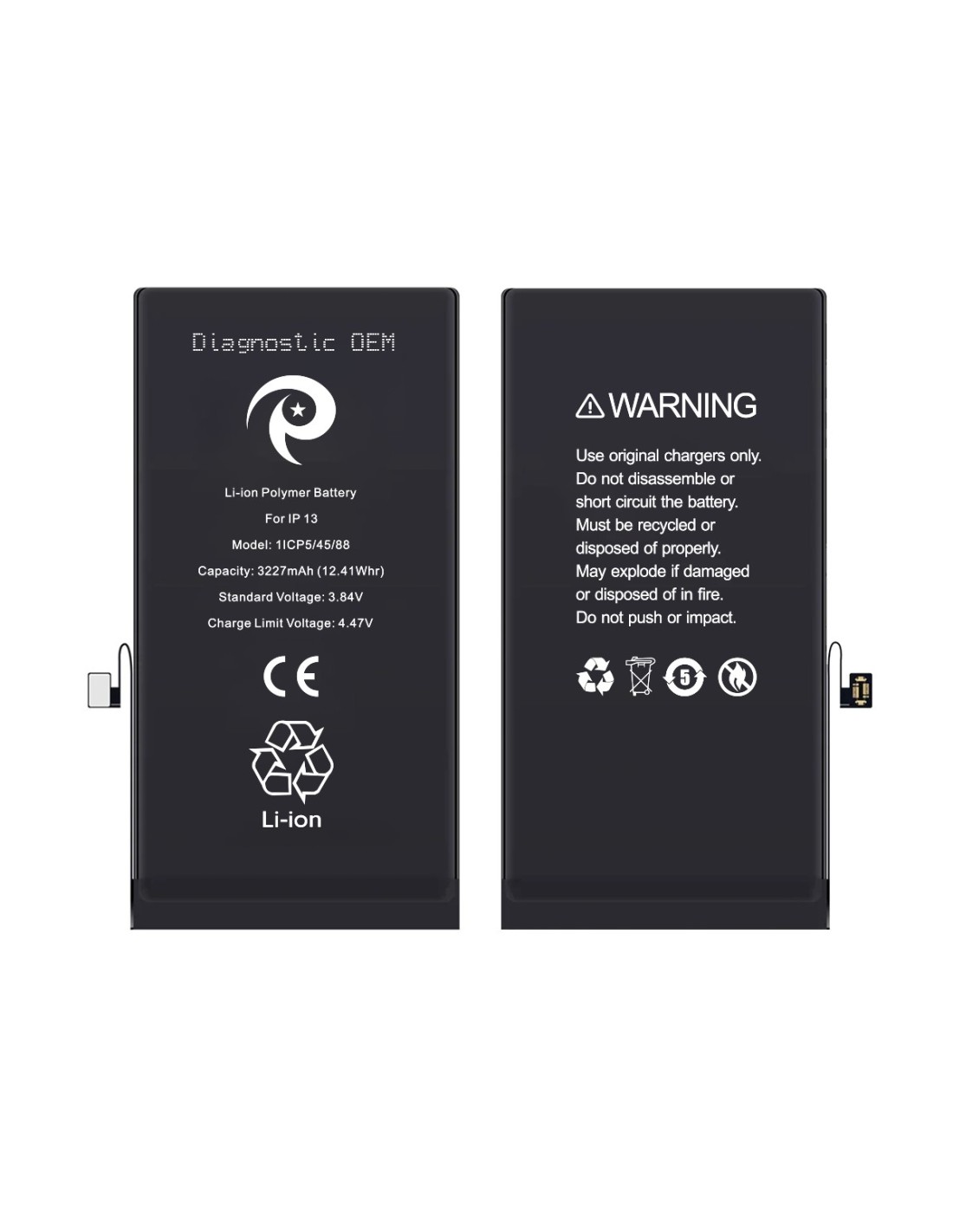

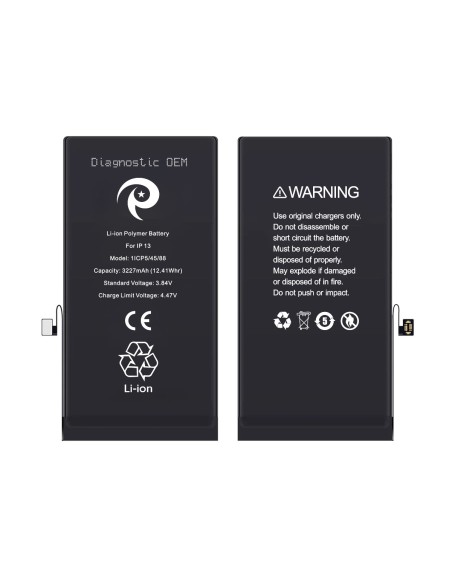

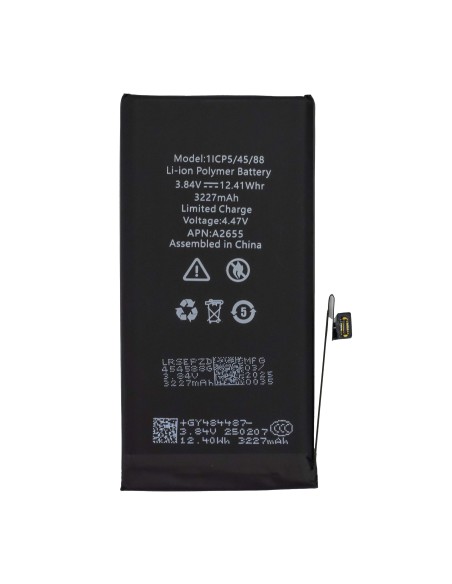

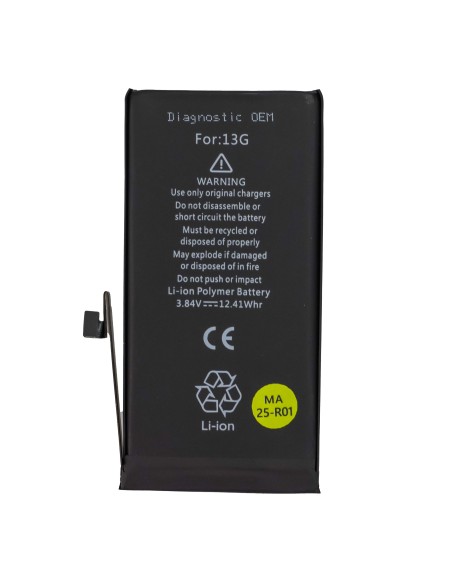

Reliable iPhone 13 Diagnostic OEM Battery
The iPhone 13 - Diagnostic OEM Battery lets you boot, test, and hand back devices faster without committing a fresh adhesive set during triage. This unit is built for the bench with stable output, an accurate fuel gauge, and a durable flex that tolerates repeated connects and disconnects. You get consistent cold boot performance for logic board checks, restore cycles, and current draw measurements on a power meter.
The cell uses a lithium‑ion polymer pack matched to iPhone13 parameters for steady voltage under load. Capacity is 3227 mAh at 3.83 v nominal, rated at 12.41 wh, so you can run functional tests, display checks, camera focus tests, Face ID alignment, and audio verification without brownouts. The integrated protection board manages over‑charge, over‑discharge, and short‑circuit events to protect both the device and your bench setup.
Key Specs And Compatibility For iPhone 13 - Diagnostic OEM Battery
Chemistry is lithium‑ion polymer. Nominal voltage is 3.83 v. Rated capacity is 3227 mAh. Energy is 12.41 wh. Connector type is iPhone 13 battery FPC. Fuel gauge and thermistor are integrated on the OEM board for accurate percentage reporting during tests. Cycle performance is designed for repeated bench use, with low self discharge when stored correctly.
Fits model is iPhone 13. Model id is A2633. Board fitment, footprint, and flex length are matched to the iPhone 13 housing and bracket layout Use this battery only on iPhone 13 mainboards to ensure correct detection, safe charging behavior, and proper gas gauge communication in iOS.
Built For Repair Benches And Repeat Use
This diagnostic pack is ideal for rapid intake, board‑level fault finding, and post‑repair verification. You can boot devices to check baseband activation, sensor suite status, True Tone transfer results, and camera modules before sealing. Stable output helps you confirm success after micro soldering on power rails and during DFU restores or firmware updates.</p
The flex and connector are reinforced for repeated cycles common in busy workshops. The pack maintains tight idle voltage for standby observation, letting you monitor quiescent current over time to catch parasitic drains. Consistent chemistry and matched gauge data reduce false low‑battery prompts that slow down test flows.
Install Notes And Service Tips
Power the device down before connecting or removing the iPhone 13 - Diagnostic OEM Battery. Connect the FPC square and level, lock the shield, and route the flex without pinching under the bracket Boot to verify charge recognition, percentage tracking, and stable idle current before you proceed to functional tests. Use fresh pull‑tab adhesive only when you are ready for the final customer battery fit.
Keep charge between 30% and 80% for longer bench life, and store in a cool, dry place when not in rotation. Avoid bending the pack, avoid metal tools on exposed contacts, and disconnect before attaching or removing display assemblies. Always perform a last boot test after reassembly to confirm charge, thermistor readout, and safe shutdown behavior.
