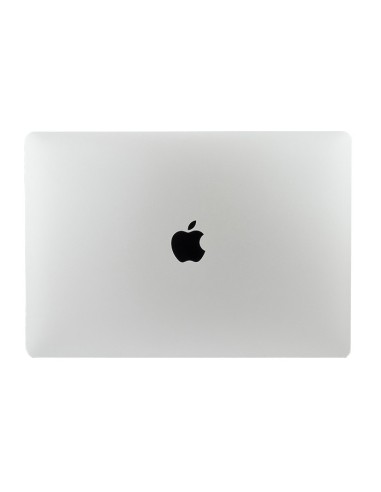

Macbook Complete A1398 Screen L2013-14 - Silver - OEM Quality
This Complete Lid Assembly Is Built For Macbook A1398 Late 2013 And Mid 2014 Units, Delivering A Ready-To-Install Replacement That Restores Retina Clarity And Factory Fit. You Get The Full Package Preassembled: 15.4-Inch Retina Lcd, Front Glass, Silver Aluminum Top Case, Hinges, Facetime Hd Camera, Display Flex, Camera Cable, Clutch Cover, Mic Cutout, Dual Wi‑Fi Antennas.
The Panel Runs At 2880 × 1800 Resolution With A 60 Hz Refresh Rate And Approximately 220 Ppi For Sharp Text And Graphics. The Ips Lcd With Led Backlight Offers Wide Viewing Angles, A Glossy Surface With Anti‑Reflective Coating, And Consistent Color For Photo, Design, And Daily Workloads.
Technical Data For A1398 Late 2013–2014 15.4-Inch Retina
Screen Size: 15.4 Inches Diagonal. Native Resolution: 2880 × 1800. Pixel Density: ~220 Ppi. Panel Type: Ips Lcd, Led Backlit. Refresh Rate: 60 Hz. Color: Silver Lid With Translucent Logo Window. Coating: Glossy With Anti‑Reflective Layer. Integrated Components: 720p Facetime Hd Camera, Microphone Aperture, Wi‑Fi Antennas, Hinges, Display Flex And Camera Flex Preinstalled. Backlight: Edge‑Lit Led With Even Diffusion. Operating Temperature: Typical Notebook Range Suitable For Daily Use.
Connector And Cable Set: A1398 L2013–2014 Display Flex And Camera Flex Assembled To The Hinge Area And Ready For Logic Board Connection. Compatibility Targets The Late 2013 And Mid 2014 Logic Board Layouts And Antenna Routing. Quality Level: Oem Quality Assembly With Tight Hinge Action, Clean Lamination, Uniform Backlight, And No Tint Shift. Finish: Anodized Silver Aluminum Shell Matching Original Chassis Color.
Installation Notes Compatibility For Repair Shops
Device Compatibility: Macbook A1398 Late 2013 And Mid 2014 Only, Covering Model Identifiers Macbookpro11,2 And Macbookpro11,3. This Assembly Is Not Cross‑Compatible With A1398 2012–Early 2013 Or A1398 2015 Due To Different Cabling, Camera Hardware, And Mounting Details. Typical Use Cases Include Cracked Glass, No Backlight, Vertical Lines, Stain‑Gate Coating Wear, Severe Ghosting, Or Damage Localized To The Lid.
Installation Tips: Disconnect The Battery Before Unplugging The Display Connector. Use P5 Pentalobe To Open The Bottom Case, T5 For The Wi‑Fi Bracket And I/O Brackets, And T8 For The Hinge Screws. Support The Hinges While Torquing To Prevent Twist In The Lid. Route Antenna Leads Exactly As Original To Maintain Wireless Performance, And Check That The Camera Cable Is Fully Seated For A Stable 720p Feed. Clean The Bezel And Hinge Caps Before Final Tightening, Then Run A Full Panel Test At 2880 × 1800, Inspecting For Backlight Uniformity, Color Consistency, And Pixel Integrity.
The screens are covered with a 2-year warranty. The warranty does not cover man-made damage.
